Name: TM601 clamp on ultrasonic flow meter hot water
Brand: Flo-Instruments Co., Ltd
SKU: TM601
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM601

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                No Pipe Modification Ultrasonic Flow Meter, OLED Display Clip On Flow Meter, RS485 Communication Clamp On Ultrasonic Flow Meter


Temperature Range:	14℉~122℉ (-10℃~50℃)	Velocity Range:	±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Power Supply:	9-36V DC	Accuracy:	±2.0%
Communication Interface:	RS485, Support MODBUS Protocol	Display Type:	OLED 128*64 Dot-matrix Display Screen

Temperature Range:	14℉~122℉ (-10℃~50℃)
Velocity Range:	±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Power Supply:	9-36V DC
Accuracy:	±2.0%
Communication Interface:	RS485, Support MODBUS Protocol
Display Type:	OLED 128*64 Dot-matrix Display Screen

TM601 clamp on ultrasonic flow meter hot water

TM601 Clamp-On Ultrasonic Flow Meter for Hot Water

Product Overview

The TM601 is a clamp-on compact ultrasonic flow meter specifically designed for ultrasonic cleaning machines and hot water applications.

Key Features & Benefits

Quick Installation

Complete installation and start measurement in just 1 minute with no pipeline modifications required.

Non-Intrusive Operation

Install and use without stopping production, without pipeline modifications, and without pressure loss.

Advanced Display

OLED display (128x64px) provides optimal visibility even in dark environments.

No Pipe Modification Necessary: Simple clamp-on design eliminates the need to cut pipes, shut down operations, or stop production.
No Special Tools Needed: Installation requires only a single Phillips-head screwdriver, making it accessible for any team member.
Professional Accuracy: Reliable ±2.0% accuracy with response speed up to 0.03m/s for precise monitoring applications.

Technical Specifications

Specification	Details
Velocity Rate	0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
Accuracy	±2.0%
Pipe Size	DN4, DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN200
Liquid Compatibility	Regular water, sea water, cooling/hot water, alcohol, and more
Pipe Material	PVC, stainless steel, carbon steel, copper, and various other materials
Power Supply	9～36V DC, maximum 500mA
Communication	MODBUS protocol, RS485
Analog Output	4-20mA, Maximum 750Ω
Alarm Output	OCT upper and lower limit alarm function (optional)
Display	OLED 128*64 dot-matrix display screen
Key Panel	Four touch buttons
Flow Unit	Metric unit selection: Cubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit	/hour, /min (factory default: cubic meters per hour)
Temperature Range	Ambient: 14F～+122F (-10℃～+50℃) Liquid: 14F～+122F (-10℃～+50℃)
Ambient Humidity	RH 0～95%, No condensation
Housing Material	Aluminum alloy, CNC machined processing
Protection Rate	IP54

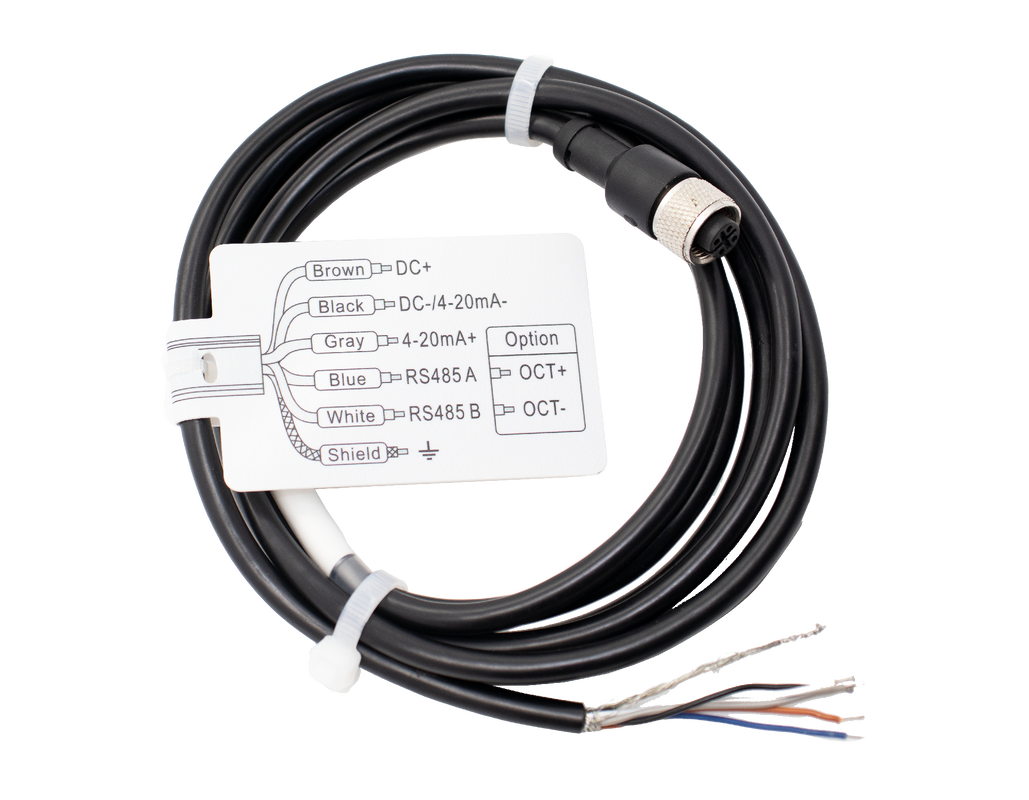

Cable Length	6.6ft (2m) standard

Pipe Size and Flow Range Reference

DN	OD	OD Range	Inch	Flow Range
DN4	OD9.53	95mm-10.5mm	1/8"	0.003～0.142 m³/h 0.047～2.374 l/min 0.013～0.627 gal/min
DN8	OD12.7	12.4mm-13.1mm	1/4"	0.011～0.570 m³/h 0.190～9.496 l/min 0.050～2.509 gal/min
DN10	OD15	14.5mm-15.4mm	3/8"	0.026～1.282 m³/h 0.427～21.366 l/min 0.113～5.644 gal/min
DN15	OD20	16.5mm-23.0mm	1/2"	0.046～2.279 m³/h 0.760～37.984 l/min 0.201～10.034 gal/min
DN20	OD25	25.0mm-30.0mm	3/4"	0.103～5.128 m³/h 1.709～85.464 l/min 0.452～22.577 gal/min
DN25	OD32	32.0mm-35.0mm	1"	0.182～9.116 m³/h 3.039～151.935 l/min 0.803～40.137 gal/min
DN32	OD40	38.0mm-45.0mm	1-1/4"	0.285～14.244 m³/h 4.748～237.399 l/min 1.254～62.714 gal/min
DN40	OD50	48.0mm-54.0mm	1-1/2"	0.410～20.511 m³/h 6.837～341.854 l/min 1.806～90.309 gal/min
DN50	OD63	58.0mm-64.0mm	2"	0.729～36.464 m³/h 12.155～607.741 l/min 3.211～160.549 gal/min
DN65	OD75	72.0mm-78.0mm	2-1/2"	1.140～56.976 m³/h 18.992～949.595 l/min 5.017～250.857 gal/min
DN80	OD90	80.0mm-92.0mm	3"	1.641～82.045 m³/h 27.348～1367.417 l/min 7.225～361.234 gal/min
DN100	OD110	108.0mm-116.0mm	4"	2.917～145.858 m³/h 48.619～2430.963 l/min 12.844～642.194 gal/min
DN125	OD140	132.0mm-142.0mm	5"	4.558～227.903 m³/h 75.968～3798.380 l/min 20.069～1003.429 gal/min
DN200	OD220	218.0mm-228.0mm	8"	11.669～583.431 m³/h 194.477～9723.852 l/min 51.376～2568.778 gal/min
