Name: TM601 clamp on ultrasonic flow meter chilled water
Brand: Flo-Instruments Co., Ltd
SKU: TM601
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM601

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                OLED Display Ultrasonic Flow Meter, No Pipe Modification Clamp On Ultrasonic Flow Meter, RS485 Communication Clip On Ultrasonic Flow Meter


Temperature Range:	14℉~122℉ (-10℃~50℃)	Velocity Range:	±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Power Supply:	9-36V DC	Accuracy:	±2.0%
Pipe Material:	PVC, Carbon Steel, Stainless Steel, Copper	Protection Rate:	IP54

Temperature Range:	14℉~122℉ (-10℃~50℃)
Velocity Range:	±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Power Supply:	9-36V DC
Accuracy:	±2.0%
Pipe Material:	PVC, Carbon Steel, Stainless Steel, Copper
Protection Rate:	IP54

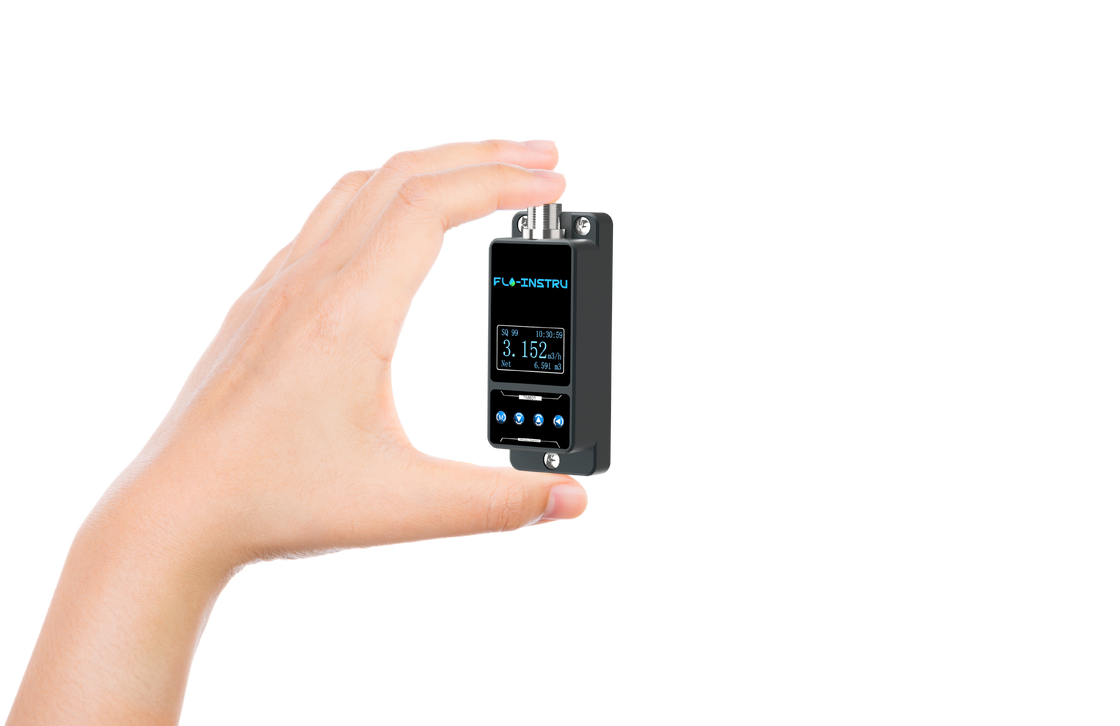

TM601 clamp on ultrasonic flow meter chilled water

TM601 Clamp On Ultrasonic Flow Meter for Chilled Water

TM601 Cleaning Industry Fix Clamp-on Ultrasonic Flowmeter

Clamp-on compact type ultrasonic flow meters designed specifically for ultrasonic cleaning machines and industrial applications.

Key Features

1-minute installation and measurement setup
No pipeline modifications required
Installation without production stoppage
Zero pressure loss during operation
OLED display (128x64px) with excellent visibility in dark environments
Compatible with various pipe materials including stainless steel, carbon steel, copper, PVC, PVDF, PPR, PPH, and HDPE

Benefits & Advantages

No Pipe Modification Necessary: Eliminates the need to cut pipes, shut down operations, or stop production. Simple clamp-on design reduces installation costs and complexity.
No Special Tools Needed: Installation requires only a Phillips-head screwdriver, making it accessible for any team member without specialized knowledge.
Professional Accuracy: Reliable ±2.0% accuracy suitable for both general sensing and precise monitoring applications with response speeds up to 0.03m/s.

Technical Specifications

Parameter	Specification
Velocity Rate	0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
Accuracy	±2.0%
Pipe Size	DN4, DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN200
Liquid Compatibility	Regular water, sea water, cooling/hot water, alcohol, and more
Pipe Material	PVC, stainless steel, carbon steel, copper, and others
Power Supply	9～36V DC, maximum 500mA
Communication	MODBUS protocol, RS485
Analog Output	4-20mA, Maximum 750Ω
Alarm Output	OCT upper and lower limit alarm function (optional)
Display	OLED 128*64 dot-matrix display screen
Key Panel	Four touch buttons
Flow Unit	Metric unit selection: Cubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit	/hour, /min (factory default: cubic meters per hour)
Additional Features	Daily, monthly, and annual flow totalizer
Temperature Range	Ambient: 14°F～+122°F (-10℃～+50℃) Liquid: 14°F～+122°F (-10℃～+50℃)
Ambient Humidity	RH 0～95%, no condensation
Housing Material	Aluminum alloy, CNC machined processing
Protection Rate	IP54
Cable Length	6.6ft (2m) standard

Pipe Size Range and Flow Range Reference

DN	OD	OD Range	Inch	Flow Range
DN4	OD9.53	95mm-10.5mm	1/8"	0.003～0.142 m³/h 0.047～2.374 l/min 0.013～0.627 gal/min
DN8	OD12.7	12.4mm-13.1mm	1/4"	0.011～0.570 m³/h 0.190～9.496 l/min 0.050～2.509 gal/min
DN10	OD15	14.5mm-15.4mm	3/8"	0.026～1.282 m³/h 0.427～21.366 l/min 0.113～5.644 gal/min
DN15	OD20	16.5mm-23.0mm	1/2"	0.046～2.279 m³/h 0.760～37.984 l/min 0.201～10.034 gal/min
DN20	OD25	25.0mm-30.0mm	3/4"	0.103～5.128 m³/h 1.709～85.464 l/min 0.452～22.577 gal/min
DN25	OD32	32.0mm-35.0mm	1"	0.182～9.116 m³/h 3.039～151.935 l/min 0.803～40.137 gal/min
DN32	OD40	38.0mm-45.0mm	1-1/4"	0.285～14.244 m³/h 4.748～237.399 l/min 1.254～62.714 gal/min
DN40	OD50	48.0mm-54.0mm	1-1/2"	0.410～20.511 m³/h 6.837～341.854 l/min 1.806～90.309 gal/min
DN50	OD63	58.0mm-64.0mm	2"	0.729～36.464 m³/h 12.155～607.741 l/min 3.211～160.549 gal/min
DN65	OD75	72.0mm-78.0mm	2-1/2"	1.140～56.976 m³/h 18.992～949.595 l/min 5.017～250.857 gal/min
DN80	OD90	80.0mm-92.0mm	3"	1.641～82.045 m³/h 27.348～1367.417 l/min 7.225～361.234 gal/min
DN100	OD110	108.0mm-116.0mm	4"	2.917～145.858 m³/h 48.619～2430.963 l/min 12.844～642.194 gal/min
DN125	OD140	132.0mm-142.0mm	5"	4.558～227.903 m³/h 75.968～3798.380 l/min 20.069～1003.429 gal/min
DN200	OD220	218.0mm-228.0mm	8"	11.669～583.431 m³/h 194.477～9723.852 l/min 51.376～2568.778 gal/min
