TM601 Cleaning Industry Fix Clamp-on Ultrasonic Flowmeter
Clamp-on compact type ultrasonic flow meters.
Product Description
TM601 is a flow meter specially designed for ultrasonic cleaning machines
1. Only takes 1min to complete the installation and start the measurement
2. No additional changes to the pipeline, and installation and measurement can be completed according to the operating instructions.
3. It can be installed and used without stopping production, without any pipeline modification, and without pressure loss
4. OLED display (128x 64px), even in the dark environment has the best display
5. Suitable for a variety of pipelines: stainless steel pipes, carbon steel pipes, copper pipes, PVC, PVDF, PPR, PPH, HDPE, etc.
Benefit & Feature
The difficulties commonly associated with installing a new ultrasonic flow meter are eliminated by simple CLAMP-ON. This design eliminates the need to cut pipe, shut down pipe running, stop production, offer additional costs, and much more.

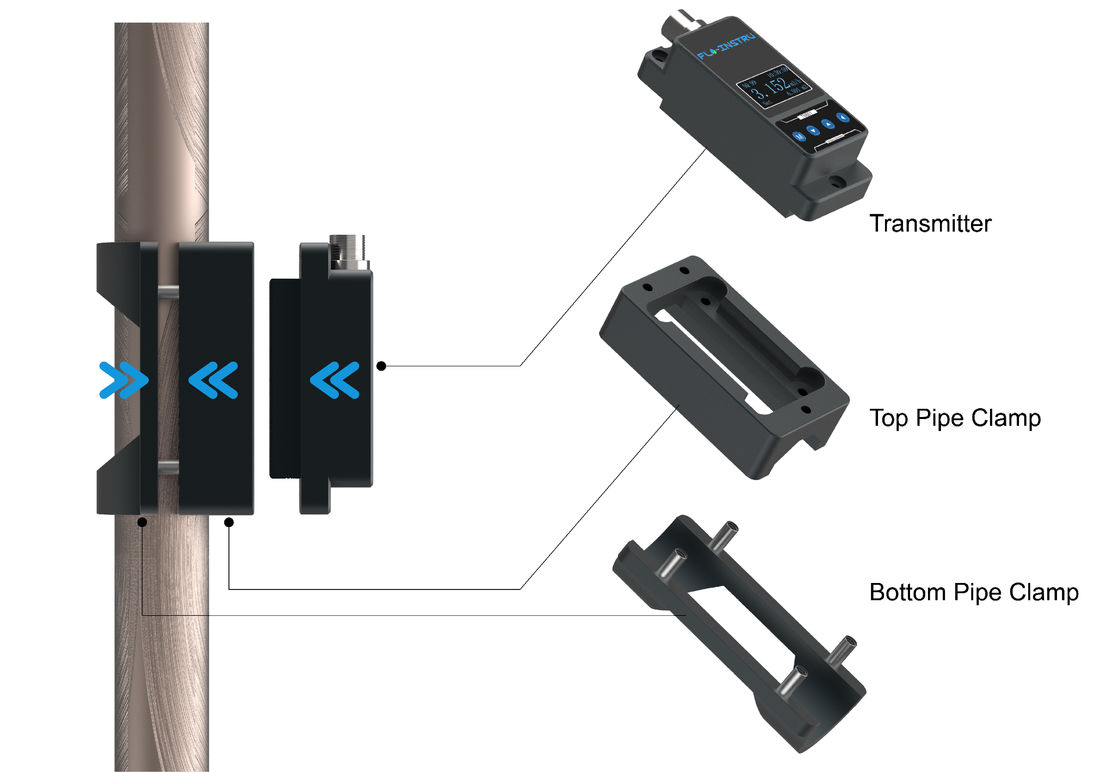

All it takes is a single Phillips-head screwdriver to install the TM601 securely to one pipe measured. This ensures that easy and right installation can be achieved by any member of the team without the need for special tools or specialized knowledge.
Based on the reliable accuracy, TM601 is allowed to be used for both general sensing applications and situations requiring more precise monitoring, which makes it easier than ever before to properly detect flow. The response speed is more up to 0.03m/s.
Specifications
| Velocity Rate | 0.328 ft/s～±16ft/s(0.1m/s～±5m/s) |
| Accuracy | ±2.0% |
| Pipe Size | DN4 DN8 DN10 DN15 DN20 DN25 DN32 |
| DN40 DN50 DN65 DN80 DN100 DN125 DN200 | |
| Liquid | Regular water,sea water,cooling/hot water,alcohol.. |
| Pipe Material | PVC,stainless steel,carbon steel,copper.… |
| Power Supply | 9～36V DC,maximum 500mA |
| Communication | Support MODBUS protocol,RS485 |
| Analog Output | 4-20mA,Maximum 750Ω |
| Alarm Output | OCT upper and lower limit alarm function (optional) |
| Display | OLED 128*64 dot-matrix display screen |
| Key Panel | Four touch buttons |
| Flow Unit | Support metric unit selection,Cubic Meters(m³),Liters(l),USA Gallons(gal). |
| Time Unit | /hour,/min,The factory default unit is cubic meters per hour. |
| Daily,Monthly,and Annual Flow Totalizer | |
| Temperature | Ambient:14F～+122F(-10℃～+50℃) |
| Liquid:14F～+122F(-10℃～+50℃) | |
| Ambient Humidity | RH 0～95%,No condensation |
| Housing Material | Aluminum alloy,CNC machined processing |
| Protection Rate | IP54 |
| Cable Length | 6.6ft (2m)standard |
The Pipe Size Range and Flow Range Reference Table
| DN | OD | OD Range | Inch | Flow Range |
| DN4 | OD9.53 | 95mm-10.5mm | 1/8" | 0.003～0.142 m³/h |
| 0.047～2.374 I/min | ||||
| 0.013～0.627 gal/min | ||||
| DN8 | OD12.7 | 12.4mm-13.1mm | 1/4" | 0.011～0.570 m³/h |
| 0.190～9.496 I/min | ||||
| 0.050～2.509 gal/min | ||||
| DN10 | OD15 | 14.5mm-15.4mm | 3/8" | 0.026～1.282 m³/h |
| 0.427～21.366 l/min | ||||
| 0.113～5.644 gal/mir | ||||
| DN15 | OD20 | 16.5mm-23.0mm | 1/2" | 0.046～2.279 m/h |
| 0.760～37.984 l/min | ||||
| 0.201～10.034 gal/min | ||||
| DN20 | OD25 | 25.0mm-30.0mm | 3/4" | 0.103～5.128 m/h |
| 1.709～85.464 l/min | ||||
| 0.452～22.577 gal/min | ||||
| DN25 | OD32 | 32.0mm-35.0mm | 1" | 0.182～9.116 m³/h |
| 3.039～151.935 l/min | ||||
| 0.803～40.137 gal/min | ||||
| DN32 | OD40 | 38.0mm-45.0mm | 1-1/4" | 0.285～14.244 m³/h |
| 4.748～237.399 l/min | ||||
| 1.254～62.714 gal/min | ||||
| DN40 | OD50 | 48.0mm-54.0mm | 1-1/2" | 0.410～20.511 m³/h |
| 6.837～341.854 l/min | ||||
| 1.806～90.309 gal/min | ||||
| DN50 | OD63 | 58.0mm-64.0mm | 2" | 0.729～36.464 m³/h |
| 12.155～607.741 l/min | ||||
| 3.211～160549 gal/mir | ||||
| DN65 | OD75 | 72.0mm-78.0mm | 2-1/2" | 1.140～56.976 m³/h |
| 18.992～949.595 I/min | ||||
| 5.017～250.857 gal/mir | ||||
| DN80 | OD90 | 80.0mm-92.0mm | 3" | 1.641～82.045 m/h |
| 27.348～1367.417 l/min | ||||
| 7.225～361.234 gal/mir | ||||
| DN100 | OD110 | 108.0mm-116.0mm | 4" | 2.917～145.858 m³/h |
| 48.619～2430.963 I/min | ||||
| 12.844～642.194 gal/min | ||||
| DN125 | OD140 | 132.0mm-142.0mm | 5" | 4.558～227.903 m³/h |
| 75.968～3798.380 l/min | ||||
| 20.069～1003429 gal/min | ||||
| DN200 | OD220 | 218.0mm-228.0mm | 8" | 11.669～583.431 m³/h |
| 194.477～9723.852 I/min | ||||
| 51.376～2568.778 gal/min |
