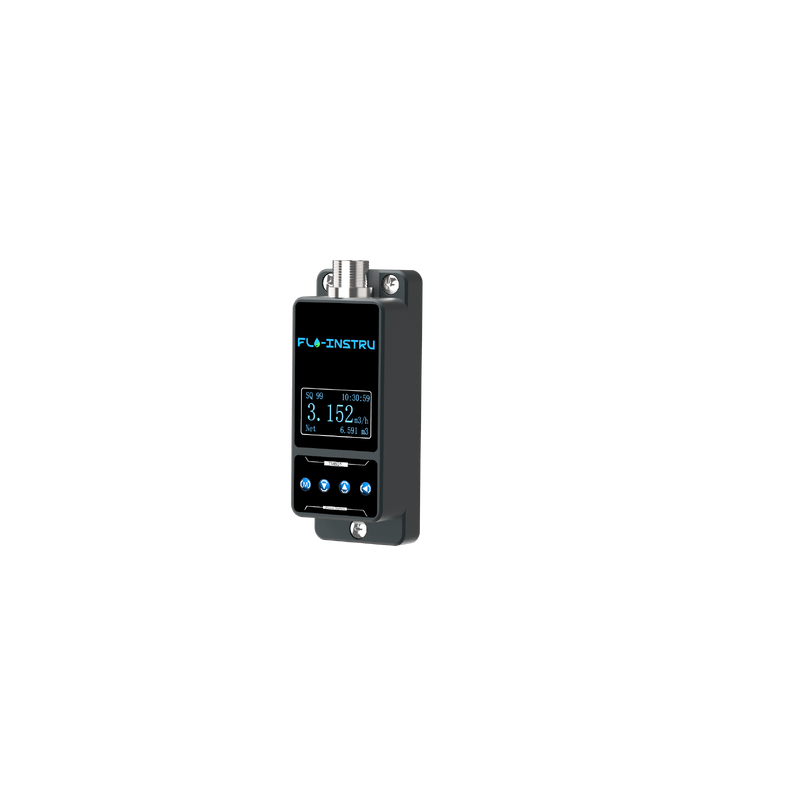

Name: TM601 clamp on ultrasonic flow meter for district heating
Brand: Flo-Instruments Co., Ltd
SKU: TM601
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM601

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                No Pipe Modification Ultrasonic Flow Meter, OLED Display Clip On Flow Meter, RS485 Communication Clamp On Ultrasonic Flow Meter


Temperature:	Transmitter Ambient Temperature: 14℉~122℉ (-10℃~50℃) Transducer Measurement Medium: 14℉~122℉ (-10℃~50℃)	Velocity Range:	±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Power Supply:	9-36V DC	Accuracy:	±2.0%
Communication Interface:	RS485, Support MODBUS Protocol	Pipe Size Range:	OD9.53, OD12.7, OD15, OD20, OD25, OD32, OD40, OD50, OD63,OD75, OD90, OD110, OD140, OD220

Temperature:	Transmitter Ambient Temperature: 14℉~122℉ (-10℃~50℃) Transducer Measurement Medium: 14℉~122℉ (-10℃~50℃)
Velocity Range:	±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Power Supply:	9-36V DC
Accuracy:	±2.0%
Communication Interface:	RS485, Support MODBUS Protocol
Pipe Size Range:	OD9.53, OD12.7, OD15, OD20, OD25, OD32, OD40, OD50, OD63,OD75, OD90, OD110, OD140, OD220

TM601 clamp on ultrasonic flow meter for district heating

TM601 Clamp-On Ultrasonic Flow Meter for District Heating

Product Overview

TM601 Cleaning Industry Fix Clamp-on Ultrasonic Flowmeter - Compact clamp-on ultrasonic flow meters designed specifically for ultrasonic cleaning machines and district heating applications.

Key Features

1-minute installation and measurement setup
No pipeline modifications required
Installation without production stoppage
Zero pressure loss during operation
High-visibility OLED display (128x64px)
Compatible with various pipe materials

Benefits & Advantages

No Pipe Modification Necessary

Eliminates installation complexities with simple clamp-on design. No need to cut pipes, shut down operations, or incur additional costs.

No Special Tools Needed

Secure installation with just a Phillips-head screwdriver. Easy setup achievable by any team member without specialized knowledge.

Professional Accuracy

Reliable precision for both general sensing and precise monitoring applications. Response speed up to 0.03m/s.

Technical Specifications

Parameter	Specification
Velocity Rate	0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
Accuracy	±2.0%
Pipe Size	DN4 DN8 DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN200
Liquid Compatibility	Regular water, sea water, cooling/hot water, alcohol
Pipe Material	PVC, stainless steel, carbon steel, copper
Power Supply	9～36V DC, maximum 500mA
Communication	MODBUS protocol, RS485
Analog Output	4-20mA, Maximum 750Ω
Alarm Output	OCT upper and lower limit alarm function (optional)
Display	OLED 128*64 dot-matrix display screen
Key Panel	Four touch buttons
Flow Unit	Cubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit	/hour, /min (factory default: cubic meters per hour)
Temperature Range	Ambient: -10℃～+50℃; Liquid: -10℃～+50℃
Ambient Humidity	RH 0～95%, No condensation
Housing Material	Aluminum alloy, CNC machined processing
Protection Rate	IP54
Cable Length	6.6ft (2m) standard

Pipe Size Range and Flow Reference Table

DN	OD	OD Range	Inch	Flow Range
DN4	OD9.53	95mm-10.5mm	1/8"	0.003～0.142 m³/h 0.047～2.374 l/min 0.013～0.627 gal/min
DN8	OD12.7	12.4mm-13.1mm	1/4"	0.011～0.570 m³/h 0.190～9.496 l/min 0.050～2.509 gal/min
DN10	OD15	14.5mm-15.4mm	3/8"	0.026～1.282 m³/h 0.427～21.366 l/min 0.113～5.644 gal/min
DN15	OD20	16.5mm-23.0mm	1/2"	0.046～2.279 m³/h 0.760～37.984 l/min 0.201～10.034 gal/min
DN20	OD25	25.0mm-30.0mm	3/4"	0.103～5.128 m³/h 1.709～85.464 l/min 0.452～22.577 gal/min
DN25	OD32	32.0mm-35.0mm	1"	0.182～9.116 m³/h 3.039～151.935 l/min 0.803～40.137 gal/min
DN32	OD40	38.0mm-45.0mm	1-1/4"	0.285～14.244 m³/h 4.748～237.399 l/min 1.254～62.714 gal/min
DN40	OD50	48.0mm-54.0mm	1-1/2"	0.410～20.511 m³/h 6.837～341.854 l/min 1.806～90.309 gal/min
DN50	OD63	58.0mm-64.0mm	2"	0.729～36.464 m³/h 12.155～607.741 l/min 3.211～160.549 gal/min
DN65	OD75	72.0mm-78.0mm	2-1/2"	1.140～56.976 m³/h 18.992～949.595 l/min 5.017～250.857 gal/min
DN80	OD90	80.0mm-92.0mm	3"	1.641～82.045 m³/h 27.348～1367.417 l/min 7.225～361.234 gal/min
DN100	OD110	108.0mm-116.0mm	4"	2.917～145.858 m³/h 48.619～2430.963 l/min 12.844～642.194 gal/min
DN125	OD140	132.0mm-142.0mm	5"	4.558～227.903 m³/h 75.968～3798.380 l/min 20.069～1003.429 gal/min
DN200	OD220	218.0mm-228.0mm	8"	11.669～583.431 m³/h 194.477～9723.852 l/min 51.376～2568.778 gal/min

Product Images
