TM605 Compact Ultrasonic Flow Meter with Easy Clip On Installation and Real Time Data Display

Name: TM605 Compact Ultrasonic Flow Meter with Easy Clip On Installation and Real Time Data Display
Brand: Flo-Instruments Co., Ltd
SKU: TM605
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM605

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:

Display:	OLED 320*240 Dot-matrix Display Screen	Pipe Diameter Range:	DN6～DN100
Communication Interface:	RS485 Communication Interface, Support Modbus Protocol	Power Supply:	24V DC
Flow Range:	0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s)	Accuracy:	Valued ±2%

Display:	OLED 320*240 Dot-matrix Display Screen
Pipe Diameter Range:	DN6～DN100
Communication Interface:	RS485 Communication Interface, Support Modbus Protocol
Power Supply:	24V DC
Flow Range:	0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s)
Accuracy:	Valued ±2%

TM605 Compact Ultrasonic Flow Meter with Easy Clip On Installation and Real Time Data Display

Water Treatment System Featuring TM605 Compact Ultrasonic Flow Meter

TM605 Compact Ultrasonic Flow Meter

Clamp-on compact type ultrasonic flow meters designed for small to medium pipe diameter applications. Features easy installation and simple setup procedures.

Product Description

The TM605 is an integrated ultrasonic flow meter specifically engineered for small to medium pipe diameters. It utilizes the ultrasonic principle of transit-time difference method, sending and receiving ultrasonic signals through sensors. When ultrasonic signals pass through flowing liquid, the difference between upstream and downstream measurements is used to calculate flow rate and velocity with high precision.

Benefits & Features

Unique Structure Design: Circular magnetic steel design enables automatic clip-on locking during installation. Complete installation to measurement in just 2-3 minutes.
Colorful Display Screen: Features popular IPS LCD display for easy data reading, even in low-light environments.

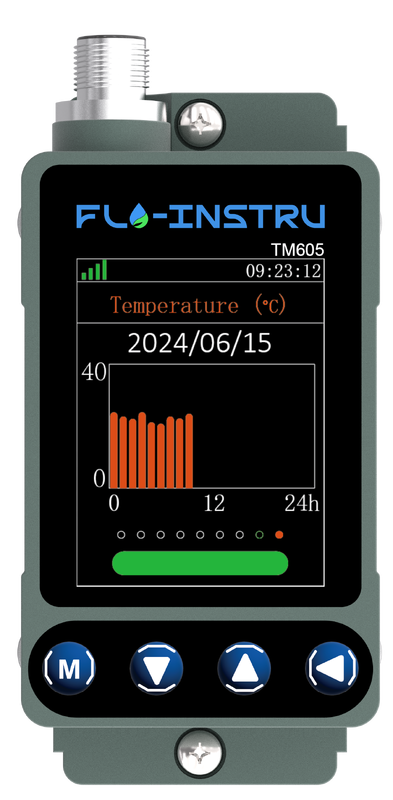

Flow Curve/Column Graph: Equipped with total flow/temperature column graph and real-time flow curve graph for clear visualization of flow changes.
Temperature Display: Built-in temperature probe at the bottom of display unit measures real-time pipe wall temperature during liquid flow.
Easy Menu Option: Simple parameter setup and changes via four-key interface. Up and Down keys enable random display interface switching.
Compatible Various Materials & Liquids: Suitable for measuring different clean liquids and pipe materials including metal and plastic pipes, water and oil.

Specifications

Velocity Rate	0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
Accuracy	±2.0%
Pipe Size	DN6 DN8 DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100
Liquid	Regular water, sea water, cooling/hot water, alcohol
Pipe Material	PVC, stainless steel, carbon steel, copper
Power Supply	24V DC, maximum 500mA
Communication	Support MODBUS protocol, RS485
Analog Output	4-20mA, Maximum 750Ω
Alarm Output	Relay, OCT upper and lower limit alarm function
Display	OLED 320*240 dot-matrix display screen
Key Panel	Four touch buttons
Flow Unit	Support metric unit selection: Cubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit	/hour, /min (factory default: cubic meters per hour)
Temperature	Ambient: 32F～+122F (0℃～+50℃) Liquid: 32F～+122F (0℃～+50℃)
Ambient Humidity	RH 0～95%, No condensation
Housing Material	Aluminum alloy, CNC machined processing
Protection Rate	IP54
Cable Length	6.6ft (2m) standard

Pipe Size Range and Flow Range Reference Table

Diameter	DN	Inch	Diameter Range(mm)	Min (m³/h)	Max (m³/h)	Min (L/min)	Max (L/min)
Φ9.53	DN6	1/8"	9-12	0.02	0.7	0.4	12
Φ12.7	DN8	1/4"	12-15	0.05	1.7	0.9	28
Φ15	DN10	3/8"	15-18	0.09	3.0	1.5	49
Φ20	DN15	1/2"	18-21	0.06	3.2	1.1	53
Φ25	DN20	3/4"	21-28	0.11	5.7	1.9	94
Φ32	DN25	1"	28-36	0.18	8.8	2.9	147
Φ40	DN32	1-1/4"	36-44	0.29	14	4.8	241
Φ50	DN40	1-1/2"	44-52	0.45	23	7.5	377
Φ63	DN50	2"	52-66	0.71	35	12	589
Φ75	DN65	2-1/2"	66-80	1.2	60	20	995
Φ90	DN80	3"	80-95	1.8	90	30	1508
Φ110	DN100	4"	100-115	2.8	141	47	2356
