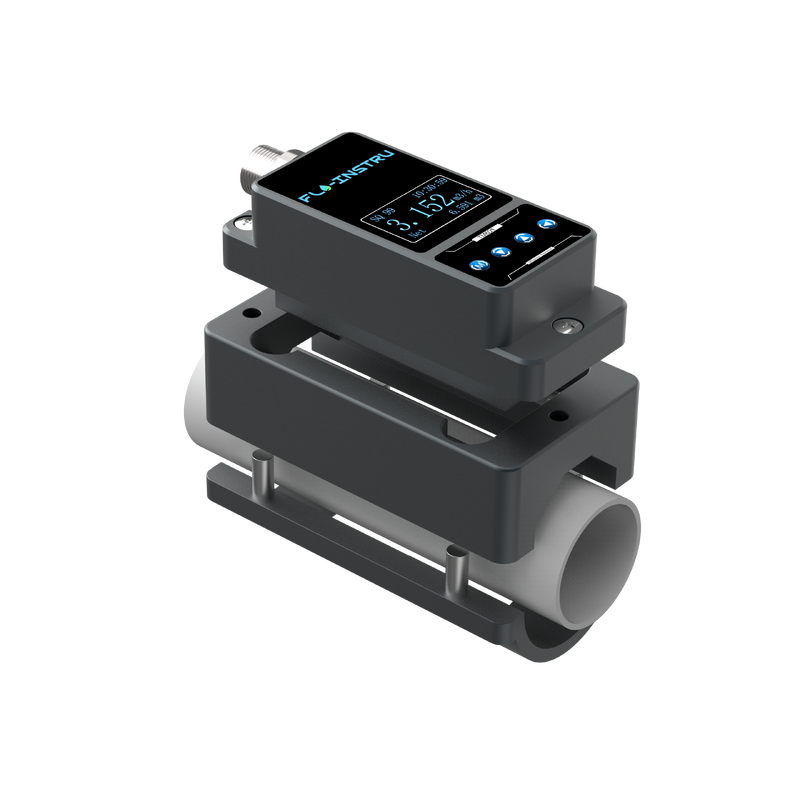

TM601 Clamp-on Ultrasonic Flowmeter with Quick Installation, No Pipeline Modifications, and High-Visibility OLED Display

Name: TM601 Clamp-on Ultrasonic Flowmeter with Quick Installation, No Pipeline Modifications, and High-Visibility OLED Display
Brand: Flo-Instruments Co., Ltd
SKU: TM601
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM601

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:

Velocity Range:	±0.1m/s ~ ±5m/s	Power Supply:	10-36V DC
Cable Length:	2m	Protection Rate:	IP54
Accuracy:	±2.0%	Temperature Range:	14℉~122℉ (-10℃~50℃)

Velocity Range:	±0.1m/s ~ ±5m/s
Power Supply:	10-36V DC
Cable Length:	2m
Protection Rate:	IP54
Accuracy:	±2.0%
Temperature Range:	14℉~122℉ (-10℃~50℃)

TM601 Clamp-on Ultrasonic Flowmeter with Quick Installation, No Pipeline Modifications, and High-Visibility OLED Display

TM601 Advanced Recirculating Aquaculture System

TM601 Cleaning Industry Fix Clamp-on Ultrasonic Flowmeter - Clamp-on compact type ultrasonic flow meters specifically designed for ultrasonic cleaning machines.

Key Advantages

Quick installation - only 1 minute to complete setup and begin measurement
No pipeline modifications required - install according to operating instructions
Install without stopping production - no pressure loss or downtime
High-visibility OLED display (128x64px) - optimal viewing in dark environments
Compatible with various pipe materials: stainless steel, carbon steel, copper, PVC, PVDF, PPR, PPH, HDPE

Benefits & Features

No Pipe Modification Necessary
Eliminates common installation difficulties with simple clamp-on design. No need to cut pipes, shut down operations, stop production, or incur additional costs.

No Special Tools Needed
Installation requires only a single Phillips-head screwdriver. Easy and correct installation achievable by any team member without specialized knowledge.

Professional Accuracy
Reliable precision suitable for both general sensing and precise monitoring applications. Response speed up to 0.03m/s.

Technical Specifications

Specification	Details
Velocity Rate	0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
Accuracy	±2.0%
Pipe Size	DN4, DN8, DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN200
Liquid Compatibility	Regular water, sea water, cooling/hot water, alcohol, etc.
Pipe Material	PVC, stainless steel, carbon steel, copper, etc.
Power Supply	9～36V DC, maximum 500mA
Communication	MODBUS protocol, RS485
Analog Output	4-20mA, Maximum 750Ω
Alarm Output	OCT upper and lower limit alarm function (optional)
Display	OLED 128*64 dot-matrix display screen
Key Panel	Four touch buttons
Flow Unit	Metric unit selection: Cubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit	/hour, /min (factory default: cubic meters per hour)
Additional Features	Daily, monthly, and annual flow totalizer
Temperature Range	Ambient: 14F～+122F (-10℃～+50℃) Liquid: 14F～+122F (-10℃～+50℃)
Ambient Humidity	RH 0～95%, No condensation
Housing Material	Aluminum alloy, CNC machined processing
Protection Rate	IP54
Cable Length	6.6ft (2m) standard

Pipe Size Range and Flow Range Reference

DN	OD	OD Range	Inch	Flow Range
DN4	OD9.53	95mm-10.5mm	1/8"	0.003～0.142 m³/h 0.047～2.374 l/min 0.013～0.627 gal/min
DN8	OD12.7	12.4mm-13.1mm	1/4"	0.011～0.570 m³/h 0.190～9.496 l/min 0.050～2.509 gal/min
DN10	OD15	14.5mm-15.4mm	3/8"	0.026～1.282 m³/h 0.427～21.366 l/min 0.113～5.644 gal/min
DN15	OD20	16.5mm-23.0mm	1/2"	0.046～2.279 m³/h 0.760～37.984 l/min 0.201～10.034 gal/min
DN20	OD25	25.0mm-30.0mm	3/4"	0.103～5.128 m³/h 1.709～85.464 l/min 0.452～22.577 gal/min
DN25	OD32	32.0mm-35.0mm	1"	0.182～9.116 m³/h 3.039～151.935 l/min 0.803～40.137 gal/min
DN32	OD40	38.0mm-45.0mm	1-1/4"	0.285～14.244 m³/h 4.748～237.399 l/min 1.254～62.714 gal/min
DN40	OD50	48.0mm-54.0mm	1-1/2"	0.410～20.511 m³/h 6.837～341.854 l/min 1.806～90.309 gal/min
DN50	OD63	58.0mm-64.0mm	2"	0.729～36.464 m³/h 12.155～607.741 l/min 3.211～160.549 gal/min
DN65	OD75	72.0mm-78.0mm	2-1/2"	1.140～56.976 m³/h 18.992～949.595 l/min 5.017～250.857 gal/min
DN80	OD90	80.0mm-92.0mm	3"	1.641～82.045 m³/h 27.348～1367.417 l/min 7.225～361.234 gal/min
DN100	OD110	108.0mm-116.0mm	4"	2.917～145.858 m³/h 48.619～2430.963 l/min 12.844～642.194 gal/min
DN125	OD140	132.0mm-142.0mm	5"	4.558～227.903 m³/h 75.968～3798.380 l/min 20.069～1003.429 gal/min
DN200	OD220	218.0mm-228.0mm	8"	11.669～583.431 m³/h 194.477～9723.852 l/min 51.376～2568.778 gal/min
