ST502 Ultrasonic Flowmeter with Clamp-on Transducers and Transit-Time Technology for Accurate Water Treatment Flow Monitoring via RS485

Product Details

Place of Origin: Shenzhen

Brand Name: Flo-Instru

Certification: CE; ISO9001

Model Number: ST502

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Highlight:
Repeatability:
0.15%
Output:
4-20mA, OCT Pulse Output, Relay Output, RS-232 / RS-485, RTD Temp. Input
Transducers Temperature:
-40℉ ~ +140℉ (-40℃~+60℃)
Velocity Range:
0.03 ~±40ft/s (0.01~±12m/s)
Power Supply:
24V DC
Pipe Size:
DN25-DN5000
Repeatability:
0.15%
Output:
4-20mA, OCT Pulse Output, Relay Output, RS-232 / RS-485, RTD Temp. Input
Transducers Temperature:
-40℉ ~ +140℉ (-40℃~+60℃)
Velocity Range:
0.03 ~±40ft/s (0.01~±12m/s)
Power Supply:
24V DC
Pipe Size:
DN25-DN5000
ST502 Ultrasonic Flowmeter with Clamp-on Transducers and Transit-Time Technology for Accurate Water Treatment Flow Monitoring via RS485

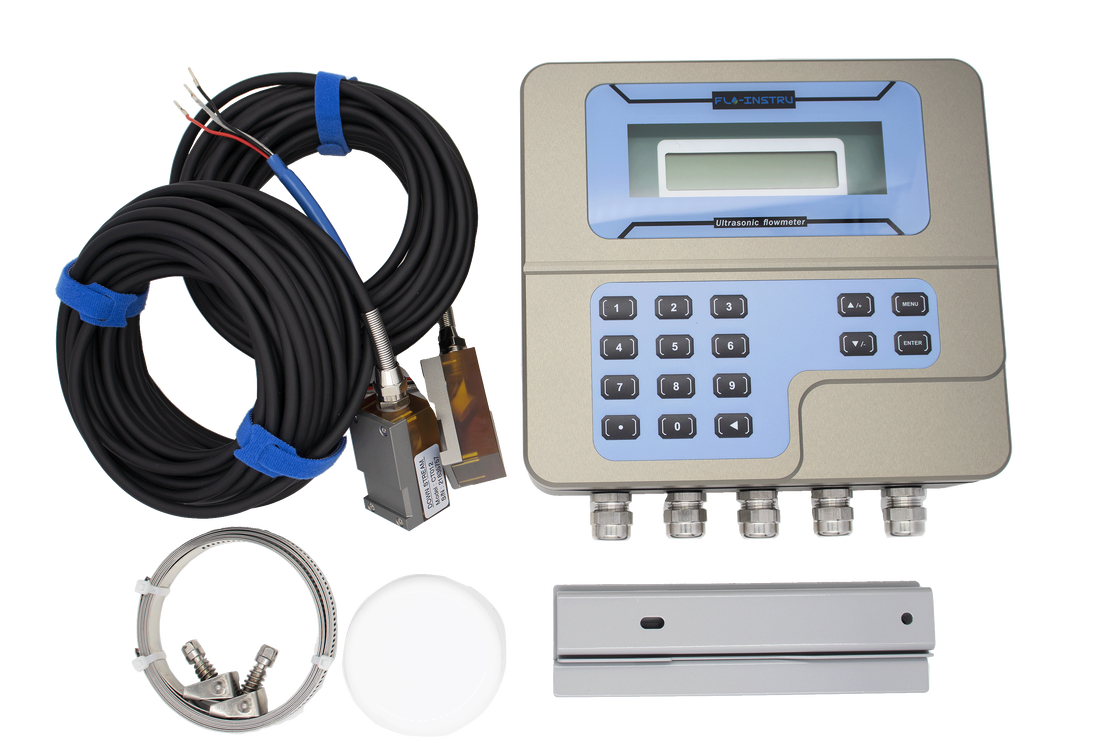

Water Treatment System featuring ST502 Ultrasonic Flowmeter
ST502 Clamp-on Ultrasonic Flowmeter

Ultrasonic flow meters that use transit-time methods to measure flow with high accuracy and reliability for water treatment and flow monitoring applications.

Product Introduction

The ST502 Ultrasonic Flow Meter utilizes advanced digital signal processing technology to deliver precise flow measurement for a wide range of liquids and pipe sizes. Engineered with high-performance transducers and industrial-grade materials, this instrument ensures long-term reliability and maintenance-free operation.

Featuring an intuitive menu display and clamp-on transducers, the ST502 offers exceptional flexibility across diverse applications. Based on Transit-Time technology, this non-invasive flowmeter collects data by clamping onto the exterior of pipes, eliminating contact with fluids and preventing contamination, pressure loss, or leakage.

Key Benefits
  • Measures actual flow and total consumption of various liquids
  • CNC machined construction with magnetic open cover technology (screw-free design)
  • Adaptive signal processing algorithms for accurate measurements in challenging conditions
  • Clear LCD display with alarm functions for easy operation and debugging
  • Transit-time ultrasonic technology enables bidirectional flow measurement
  • Built-in 2G SD card for historical flow data analysis and system optimization
  • Integrated keypad and simple menu system for quick configuration

The ST502 features a premium aluminum alloy construction with CNC processing and industry-leading full-sealed iron-absorbing side-opening technology, eliminating screws and enabling "one-second opening" convenience.

Measurement Principle
TVT (Transit-Time Vortex) Technology

TVT technology represents a cutting-edge approach to ultrasonic flow measurement, combining transit-time ultrasonics with vortex shedding phenomenon detection. This innovative integration enhances accuracy, versatility, and performance, making it ideal for applications requiring precise measurements in varying flow conditions.

ST502 Ultrasonic Flowmeter TVT technology diagram

The device employs ultrasonic transducers installed on the pipe exterior (clamp-on) or inserted in-line. One transducer sends ultrasonic pulses downstream with the flow, while another sends upstream against the flow. The time difference between signals is directly proportional to flow velocity.

Technical Specifications
Performance Specifications
Velocity Range 0.03 ~ ±40ft/s (0.01 ~ ±12m/s)
Accuracy ±0.5%
Pipe Size 1"~200" (25mm~5000mm)
Repeatability 0.15% of measured value
Linearity ±1.0%
Fluid Compatibility Water, Sea water, Oil, Alcohol, and more
Pipe Material Compatibility PVC, stainless steel, carbon steel, copper, and more
Function Specifications
Communication & Outputs ModBus RS485, 4~20mA analog output (max load 750Ω), 0~9999Hz pulse output (OCT), relay output (max 1Hz)
Flow Units Cubic Meters (m³), Liters (l), USA Gallons (gal) - factory default: m³/h
Time Units /Day/Hour, /Min, /Sec
SD Card Storage Max 2GB capacity, working over 1000 days, storage interval: 1~86400s
Power Supply 24V DC/1A max
Keypad 16 touch keys
Display 20×2 lattice alphanumeric, backlit LCD
Temperature Range Transmitter: -40℉~140℉ (-40℃~60℃)
Transducer: -40℉~248℉ (-40℃~120℃)
Humidity Up to 99% RH, non-condensing
Physical Specifications
Transmitter Die-cast aluminum, IP65, CNC machined
Transducer Encapsulated design, protection grade IP68
Transducer Cable Standard length: 33ft (10m)
Weight Transmitter: 1kg
Product Dimensions
Transmitter
ST502 Transmitter dimensions diagram
Normal Transducer
ST502 Normal transducer dimensions
High-temperature Transducer
ST502 High-temperature transducer dimensions
Ultra High-temperature Transducer
ST502 Ultra High-temperature transducer dimensions
Product Display
ST502 Ultrasonic Flowmeter product display
Communication and Output Functions

The ST502 Fixed Ultrasonic Flow Meter offers multiple communication and output options for seamless integration into industrial control systems, enabling real-time data acquisition, remote monitoring, and flow process control.

ST502 communication and output functions diagram ST502 output connections and interfaces
Output Type Function Application Examples
RS485 (Modbus) Digital communication Remote monitoring, SCADA, system integration
4-20mA Analog input/output PLC input, process feedback, DCS systems
OCT Pulse Flow totalization output Batch controllers, energy meters, flow loggers
Relay Alarm/control output Trigger alarms, control valves/pumps, flow safety protection
Wiring Diagram
ST502 Ultrasonic Flowmeter wiring diagram
Installation Methods
V Method (Standard)

Considered the standard method, providing accurate readings for pipe diameters from 25mm to 400mm (1"~16"). Requires proper transducer installation at pipe centerline with equal spacing on either side.

V method installation diagram
Z Method

Features less signal attenuation than V method by utilizing directly transmitted signals. Suitable for pipe diameters from 100mm to 3000mm (4"~120").

Z method installation diagram
N Method

Sound waves traverse fluid twice and bounce three times off pipe walls. Improves measurement accuracy by extending transit distance. Suitable for small pipe diameters (uncommonly used).

N method installation diagram
W Method

Sound waves traverse fluid four times and bounce four times off pipe walls. Extends transit distance for improved accuracy. Suitable for very small pipes (diameters less than 50mm, 2").

W method installation diagram
