SE603 Separate Ultrasonic Energy Flowmeter For Power Plant

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: SE603

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Highlight:

SE603 Separate Ultrasonic Energy Flowmeter

,

Power plant Ultrasonic Energy Meter

Flow Range:
±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Accuracy:
Valued ±2%
Repeatability:
0.40%
Pipe Diameter Range(Optional):
OD9.53~OD110
Measuring Medium:
Regular Water, Sea Water, Cooling/hot Water, Alcohol...
Pipe Material(Optional):
PVC, Stainless Steel, Carbon Steel, Copper...
Communication:
RS485 Communication Interface, Support Modbus Protocol
Power Supply:
24V DC
Keyboard:
4 Touch Keys
Display:
In-built Backlit OLED 128*64 Dot-matrix Displays
Flow Range:
±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Accuracy:
Valued ±2%
Repeatability:
0.40%
Pipe Diameter Range(Optional):
OD9.53~OD110
Measuring Medium:
Regular Water, Sea Water, Cooling/hot Water, Alcohol...
Pipe Material(Optional):
PVC, Stainless Steel, Carbon Steel, Copper...
Communication:
RS485 Communication Interface, Support Modbus Protocol
Power Supply:
24V DC
Keyboard:
4 Touch Keys
Display:
In-built Backlit OLED 128*64 Dot-matrix Displays
SE603 Separate Ultrasonic Energy Flowmeter For Power Plant

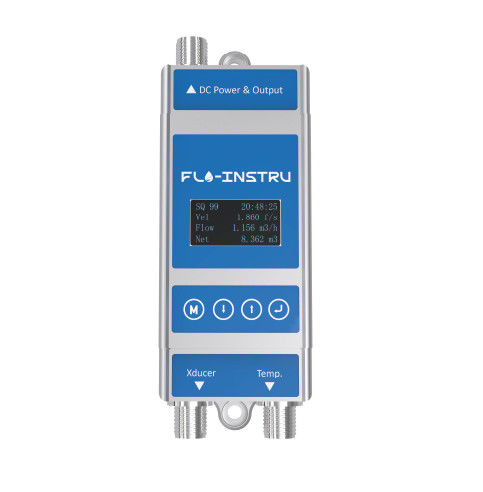

SE603 Separate Ultrasonic Energy Flowmeter

Clamp-on simple type ultrasonic flow meters.



Introduction

SE603 ultrasonic energy meter used widely in flow and energy measurement is based on state-of-the-art TVT technology, which fully meets the new standards for energy and environmental savings.

In particular, it allows accurate measurement of heat and cooling energy in which water is the heat transfer fluid. It is specifically adapted to the residential and industrial sectors: low-cost housing, condominiums, buildings, individual houses, factories, cities, neighbourhoods, etc.

The meter has remote reading functionalities in order to better monitor energy consumption. It allows communication according to RS485 Modbus standards.The ultrasonic technology eliminates a large part of the pressure losses, which ensures a very wide measuring range.

The advantage of ultrasonic measurement is that there are no moving parts in contact with the fluid, which gives the device a long service life.



Main Features

  • No Pipe Modification Necessary,No Special Tool Needed

The difficulties commonly associated with installing a new ultrasonic flow meter are eliminated by simple CLAMP-ON.This design eliminates the need to cut pipe, shut down pipe running, stop production, and reduce additional costs etc. Easy and simple installation can be achieved by a single Phillips-head screw driver without any special tools.

  • Energy Measurement

The measurement accuracy of PT1000 temperature sensor is very high, which can reach ±0.1℃, ±0.2℃, ±0.5℃ and it can measurement energy through the temperature differences from temperature sensors at inlet water and outlet water.

  • Hook and Snap-On Installation

The main unit(display screen) has a very special and easy installation. Method 1, just hang it by hook hole of the top and bottom on the wall or on the pipeline etc; Method 2, its back has snap-on design. It can be easily installed by just clamping it on the rail in the power distribution cabinet or somewhere that can accommodate the buckle on its back.



Working Principle

SE603 is a separete and clamp-on ultrasonic energy meter, specially designed for meeting the small/medium/large pipe size. It is very easy and simple in seting-up and installation. The product developed by adopting the ultrasonic principle of transit-time difference method sends and receives ultrasonic signals through the sensor. When the ultrasonic signal is transmitted and received through the moving liquid, there will be a difference between upstream and downstream transit-time, which can be used to calculating flow and velocity. Samely, based on PT1000 temperature sensor, SE603 can display energy measurement through the temperature differences from temperature sensors at inlet water and outlet water.



Specifications

Performance Index
Flow Range ±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Accuracy Valued ±2%
Repeatability 0.40%

Pipe Diameter

Range(Optional)

OD9.53~OD110
Measuring Medium Regular water, sea water, cooling/hot water,alcohol...
Pipe Material(Optional) PVC, stainless steel, carbon steel, copper...
Function Index
Communication Interface RS485 communication interface, support Modbus protocol
Power Supply 24V DC
Keyboard 4 touch keys
Display In-built Backlit OLED 128*64 dot-matrix displays
Temperature Transmitter ambient temperature: 32℉~122℉(0℃~50℃)
Transducer measurement medium: 32℉~176℉(0℃~80℃)
RTD measuring: 35.6℉~221℉(2℃~105℃)
Humidity RH 0~95% RH,non-condensing
IP IP54
Working Pressure 1.6MPa
Physical Characteristics
Transmitter Aluminum alloy
Sensor Clamp-on
Cable Standard length: 6.6ft (2m)

Statistical table of applicable range of pipe clamp for clamp on



DN OD OD Range Inch Flow Range
DN6 OD9.53 9.5mm-12mm 1/8" 0.003 ~ 0.142 m3/h
0.047 ~ 2.374 l/min
0. 013 ~ 0.627 gal/min
DN8 OD12.7 12mm-14mm 1/4" 0.011 ~ 0.570 m3/h
0.190 ~ 9.496 l/min
0. 050 ~ 2.509 gal/min
DN10 OD15 14mm-16mm 3/8" 0.026 ~ 1.282 m3/h
0.427 ~ 21.366 l/min
0. 113 ~ 5.644 gal/min
DN15 OD20 20mm-22mm 1/2" 0.046 ~ 2.279 m3/h
0.760 ~ 37.984 l/min
0.201 ~ 10.034 gal/min
DN20 OD25 25mm-28mm 3/4" 0. 103 ~ 5. 128 m3/h
1.709 ~ 85.464 l/min
0.452 ~ 22.577 gal/min
DN25 OD32 32mm-35mm 1" 0. 182 ~ 9. 116 m3/h
3.039 ~ 151.935 l/min
0.803 ~ 40. 137 gal/min
DN32 OD40 38mm-45mm 1- 1/4" 0.285 ~ 14.244 m3/h
4.748 ~ 237.399 l/min
1.254 ~ 62.714 gal/min
DN40 OD50 48mm-54mm 1-1/2" 0.410 ~ 20.511 m3/h
6.837 ~ 341.854 l/min
1 .806 ~ 90.309 gal/min
DN50 OD63 58mm-64mm 2" 0.729 ~ 36.464 m3/h
12. 155 ~ 607.741 l/min
3.211 ~ 160549 gal/min
DN65 OD75 72mm-78mm 2-1/2" 1. 140 ~ 56.976 m3/h
18.992 ~ 949.595 l/min
5.017 ~ 250.857 gal/min
DN80 OD90 86mm-96mm 3" 1.641 ~ 82.045 m3/h
27.348 ~ 1367.417 l/min
7.225 ~ 361.234 gal/min
DN100 OD110 108mm-116mm 4" 2.917 ~ 145.858 m3/h
48.619 ~ 2430.963 l/min
12.844 ~ 642. 194 gal/min
