PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement

Product Details

Place of Origin: China

Brand Name: Flo-Instruments

Certification: CE/IS09001

Model Number: PH301

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Carton Packing

Delivery Time: 3~5 days

Payment Terms: T/T

Get Best Price
Highlight:

4.3'' TFT screen Ultrasonic Flow Meter

,

IP68 Handheld Ultrasonic Flow Meter

,

PH301 Handheld Ultrasonic Flow Meter

Velocity Range:
±0.03 ~ ±40 Ft/s (±0.01~ ±12 M/s)
Accuracy:
±0.5% Of Measured Value
Repeatability:
0.15%
Linearity:
±0.5%
Pipe Size:
1''~ 200'' (25mm~5000mm)
Outputs:
Analog Output: 4~20mA, Max 750 Ω
SD Card:
Storage: 2GB, Max: 512 Files, Interval: 1~86400s
Power Supply:
Rechargeable Lithium Battery Power (continuous Operation Of Main Battery 12 Hours)
Keypad:
22 Touch Keys
Display:
4.3 Inch TFT Screen (320 × 240), Backlight LCD
Temperature:
Transmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~248℉(-40℃~120℃)
Humidity:
0 To 99% RH, Non-condensing
Transmitter:
NEMA13 (IP54)
Transducer:
Encapsulated Design, IP68; Standard Cable Length: 5m
Velocity Range:
±0.03 ~ ±40 Ft/s (±0.01~ ±12 M/s)
Accuracy:
±0.5% Of Measured Value
Repeatability:
0.15%
Linearity:
±0.5%
Pipe Size:
1''~ 200'' (25mm~5000mm)
Outputs:
Analog Output: 4~20mA, Max 750 Ω
SD Card:
Storage: 2GB, Max: 512 Files, Interval: 1~86400s
Power Supply:
Rechargeable Lithium Battery Power (continuous Operation Of Main Battery 12 Hours)
Keypad:
22 Touch Keys
Display:
4.3 Inch TFT Screen (320 × 240), Backlight LCD
Temperature:
Transmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~248℉(-40℃~120℃)
Humidity:
0 To 99% RH, Non-condensing
Transmitter:
NEMA13 (IP54)
Transducer:
Encapsulated Design, IP68; Standard Cable Length: 5m
PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement

PH301 Portable Ultrasonic Flow Meters

Monitor liquid flow from site to site freely.



Introduction

Flo-Instruments' PH301 is a highly accurate and non-invasive portable ultrasonic flow meter for liquid flow measurement. PH301uses the most reliable digital signal processing technology, transmitting flow measurement for a wide range of liquid and pipe size with high accuracy and reliability.

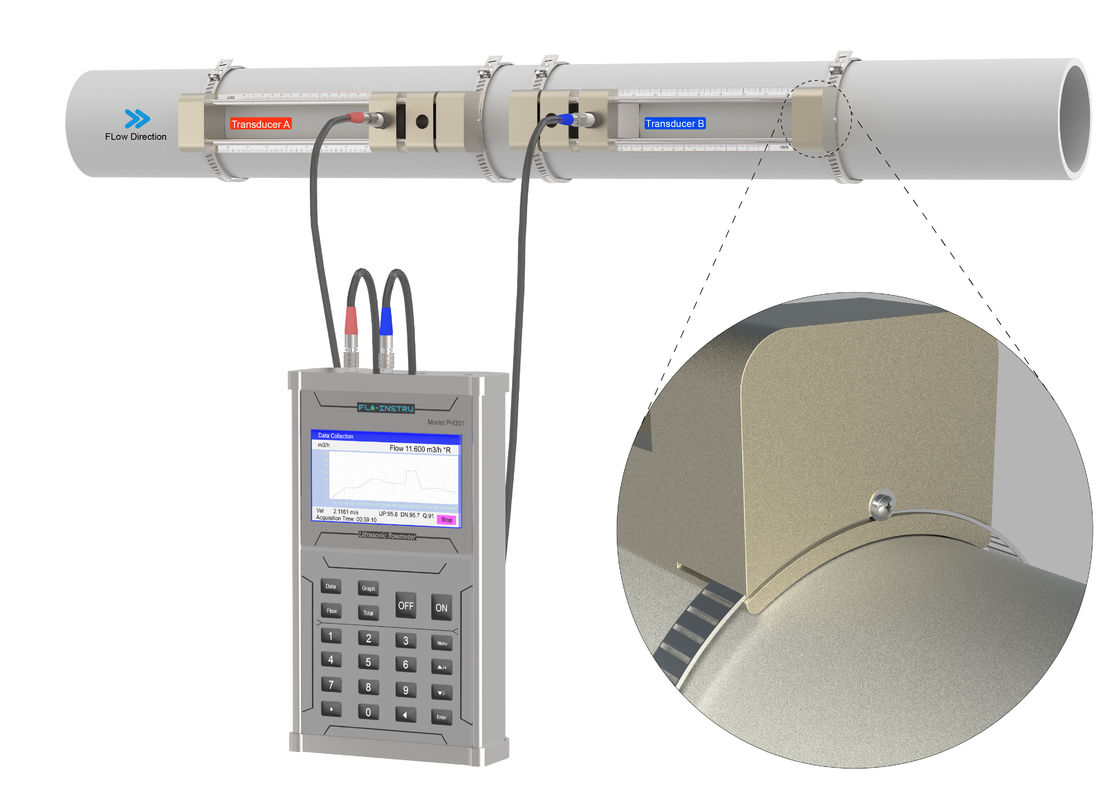

PH301 is the ideal tool for testing and validating flow. The battery operated portable meter utilizes clamp-on transducers to measure flow through the pipe wall. One transducer sets are provided for optimal performance with pipes ranging from 1” to 200” in diameter, and it works with most commonly-used and other special pipe materials.

Clean and big screen makes users easier to enter the pipe diameter, wall thickness and pipe material in the meter. PH301 can be powered for up to 12 hours using the built-in and rechargeable battery. Monitoring flow over time is made easy with the built-in data logger. The 2G SD card can max 512 files with intervals ranging from 1 seconds to 86400s apart. These data can be downloaded to your PC via a USB flash drive.

PH301 is provided with high protection level for IP65 transmitter and IP68 transducer and supports samely bidirectional measurement with totalizing function. In addition, it's optional magnetic guide rail or mounting accessory by pipe straps.



Features

  • Ideal for Monitoring & Measuring Flow

Clamp-on transducers allow for quick installation with no shutdown, no drilling and no pressure drop. Each meter is provided with a built-in SD card making it an ideal solution for monitoring flow over time. Fully equipped carrying case includes a set of complete measurement tools and the rechargeable internal battery makes it the ideal go-anywhere flowmeter.

  • Works with Multi Pipe Materials

It is designed to work with many different pipe materials including PVC, carbon steel, stainless steel, copper, PE, HDPE, ductile iron, aluminum, asbestos and fiber glass-epoxy.

  • Simple to Set Up and Use

PH301 is easily configured through 4.3 inch TFT colorful screen and 22 touch keys. Enter a few key parameters and the display screen will display the correct transducer separation distance.

  • Alphanumeric and Flow Curve Display Completes the Picture

A large, multifunction LCD presents measured data in both alphanumeric and graphic forms. Standard alphanumeric functions include flow velocity, flow, and totalized flow in either English (U.S.) or metric units. In graphic mode, the LCD shows both real time and logged data, which is very useful for reviewing data and observing trends while on the site.



Principle

  • Introduction to TVT

TVT(Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining the principles of transit-time ultrasonics with the capability to harness the vortex shedding phenomenon, delivering unparalleled accuracy and versatility in ultrasonic flow meters. This innovative integration technology enhances the accuracy, versatility, and performance of ultrasonic flow meters, making them well-suited for a wide range of applications across various industries and is a valuable solution for industries requiring precise flow measurements in varying flow conditions.



  • Enhanced Accuracy in Turbulent Flows:

TVT technology excels in applications where fluid flow conditions vary between laminar and turbulent. The incorporation of vortex shedding data enhances accuracy in challenging flow environments.

  • Versatility in Fluid Types:

TVT technology is versatile and suitable for a wide range of fluid types, including liquids with varying viscosities and densities.

PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement 0





Specifications

PERFORMANCE SPECIFICATIONS
Velocity range ±0.03 ~ ±40 ft/s (±0.01 ~ ±12 m/s)
Accuracy ±0.5% of measured value
Repeatability 0.15%.
Linearity ±0.5%.
Pipe Size 1ʺ ~ 200ʺ (25mm~5000mm)
FUNCTION SPECIFICATIONS
Outputs Analog output: 4~20mA, Max 750 Ω.
SD card Storage: 2GB;
Max: 512 files;
Interval: 1~86400s.
Power supply Rechargeable Lithium Battery Power
(continuous operation of main battery 12 hours ).
Keypad 22 touch keys.
Display 4.3 inch TFT screen, backlight LCD.
Temperature Transmitter: 32℉~140℉ (0℃~60℃)
Transducer: -40℉~248℉ (-40℃~120℃)
Humidity 0 to 99% RH, non-condensing
PHYSICAL SPECIFICATIONS
Transmitter NEMA13 (IP54)
Transducer Encapsulated design, IP68;
Standard cable length: 5m
Weight Transmitter: approximately 1.0kg



























































PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement 1

PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement 2

PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement 3

PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement 4

PH301 Handheld Ultrasonic Flow Meter For Subsurface Water Measurement 5
