Product Details
Place of Origin: Shenzhen, China
Brand Name: Flo-Instru
Certification: ISO:9001, CE
Model Number: EM7
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Repeatability Error: |
±0.1% |
Accuracy: |
±0.5% Of Rate;±0.2% Of Rate |
Velocity: |
0.3-10m/s |
Relative Humidity: |
5%~95% |
Power Consumption: |
<20W |
Protection: |
IP 65;IP 68(Remote Type) |
Repeatability Error: |
±0.1% |
Accuracy: |
±0.5% Of Rate;±0.2% Of Rate |
Velocity: |
0.3-10m/s |
Relative Humidity: |
5%~95% |
Power Consumption: |
<20W |
Protection: |
IP 65;IP 68(Remote Type) |

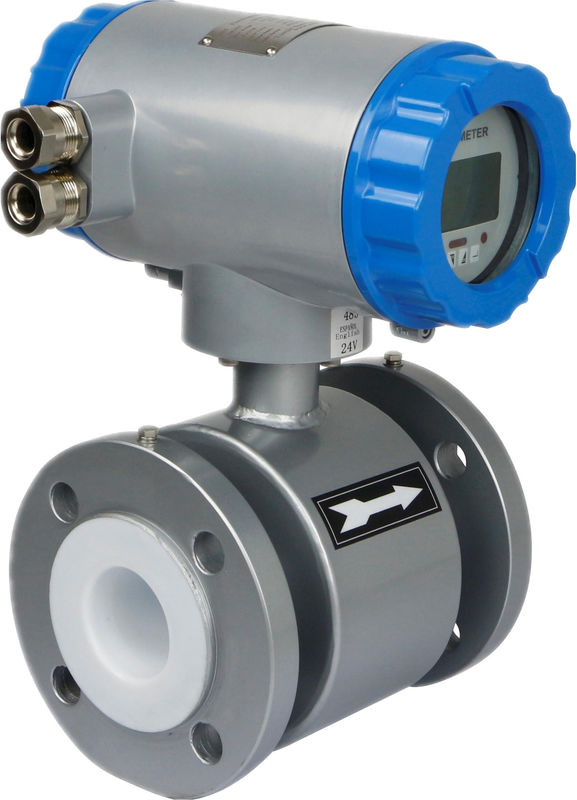

EM7 Electromagnetic Flow Meter
DESCRIPTION
Electromagnetic flow meteris flexible anduniversally applicable flow measurement systemslt is a velocity flow meter which does not have anymoving parts and is ideal for conductive fluid.
APPLICATIONS
FEATURES
TECHNICAL DATA
| Diameter | PTFE:DN2.5-DN1000 |
| Rubber:DN5O-DN3000 | |
| Flow Direction | Positive; Negative |
| Repeatability Error | ±0.1% |
| Accuracy | ±0.5% of rate;±0.2% of rate |
| Medium Temperature | Rubberliner:-20..+60℃ |
| PTFE liner:-20...+120℃ | |
| PFA:-20...+180℃ | |
| Velocity | 0.3-10m/s |
| Ambient Temperature | -20...+60 ℃ |
| Relative Humidity | 5%~95% |
| Power Consumption | <20W |
| Protection | IP 65;IP 68(Remote Type) |
| Model | Suffix Code | Description | |||||||||||
| XXX- | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | Electromagnetic Flow Meter | |
| Type | B | B type | |||||||||||
| Y | Y type (optional explosion proof) | ||||||||||||
| H | Energy Meter(PT1000 temperature sensors) | ||||||||||||
| Diameter | XXX | Stand for diameter 0006:DN6;0015:DN15 0100:DN100;2200:DN2200 |
|||||||||||
| Structure | S | Compact Type with local display | |||||||||||
| L | Remote Type; 10 meters cable default | ||||||||||||
| Electrode Material | M | SS316L | |||||||||||
| T | Titanium | ||||||||||||
| D | Tantalum | ||||||||||||
| H | Hastelloy C | ||||||||||||
| P | Platinum-Iridium | ||||||||||||
| Signal Output | 0 | No Output | |||||||||||
| 1 | 4-20mA / Pulse | ||||||||||||
| Liner Material | X | Rubber | |||||||||||
| P | Polyurethane | ||||||||||||
| F | PTFE | ||||||||||||
| A | PFA | ||||||||||||
| Power Supply | 0 | 110-240V AC | |||||||||||
| -1 | 24V DC(20-36V DC) | ||||||||||||
| -2 | Battery Power Supply | ||||||||||||
| Communication | 0 | No Communication | |||||||||||
| 1 | Modbus RS485 | ||||||||||||
| 2 | HART | ||||||||||||
| 3 | GPRS | ||||||||||||
| Sensor Grounding | 0 | No Grounding | |||||||||||
| 1 | Grounding Ring | ||||||||||||
| 2 | Grounding Electrode | ||||||||||||
| Connection | DXX | D16:DIN PN16 Flange;D25: DIN PN25 Flange. | |||||||||||
| AXX | A15:ANSI150# Flange;A30:ANSI300# Flange. | ||||||||||||
| JXX | J10:JIS 10K Flange;J20:JIS 20K Flange… | ||||||||||||
| XXX | On request | ||||||||||||
| Body Material | CS | Carbon Steel | |||||||||||
| S4 | Stainless Steel 304 | ||||||||||||
| Diameter | Flow Rate(m³/h) | |||
| V=0.3m/s | V=6m/s | V=10m/s | ||
| mm | Inch | Min | Calibrated | Max |
| 2.5 | 1/10" | 0.0053 | 0.106 | 0.177 |
| 4 | 1/8" | 0.014 | 0.271 | 0.452 |
| 6 | 1/4" | 0.03 | 0.6 | 1 |
| 10 | 3/8" | 0.1 | 1.7 | 3 |
| 15 | 1/2" | 0.2 | 4 | 6 |
| 20 | 3/4" | 0.3 | 7 | 11 |
| 25 | 1" | 0.5 | 11 | 18 |
| 32 | 1-1/4" | 0.9 | 17 | 29 |
| 40 | 1-1/2" | 1 | 27 | 45 |
| 50 | 2" | 2 | 42 | 71 |
| 65 | 2-1/2" | 4 | 72 | 120 |
| 80 | 3" | 5 | 109 | 181 |
| 100 | 4" | 8 | 170 | 283 |
| 125 | 5" | 13 | 265 | 442 |
| 150 | 6" | 20 | 382 | 636 |
| 200 | 8" | 34 | 679 | 1131 |
| 250 | 10" | 53 | 1060 | 1767 |
| 300 | 12" | 76 | 1527 | 2545 |
| 350 | 14" | 104 | 2078 | 3465 |
| 400 | 16" | 136 | 2714 | 4524 |
| 450 | 18" | 171 | 3435 | 5726 |
| 500 | 20" | 212 | 4241 | 7069 |
| 600 | 24" | 305 | 6107 | 10179 |
| 700 | 28" | 415 | 8310 | 13850 |
| 800 | 32" | 542 | 10860 | 18100 |
| 900 | 36" | 662 | 13740 | 22900 |
| 1000 | 40" | 848 | 16962 | 28270 |
