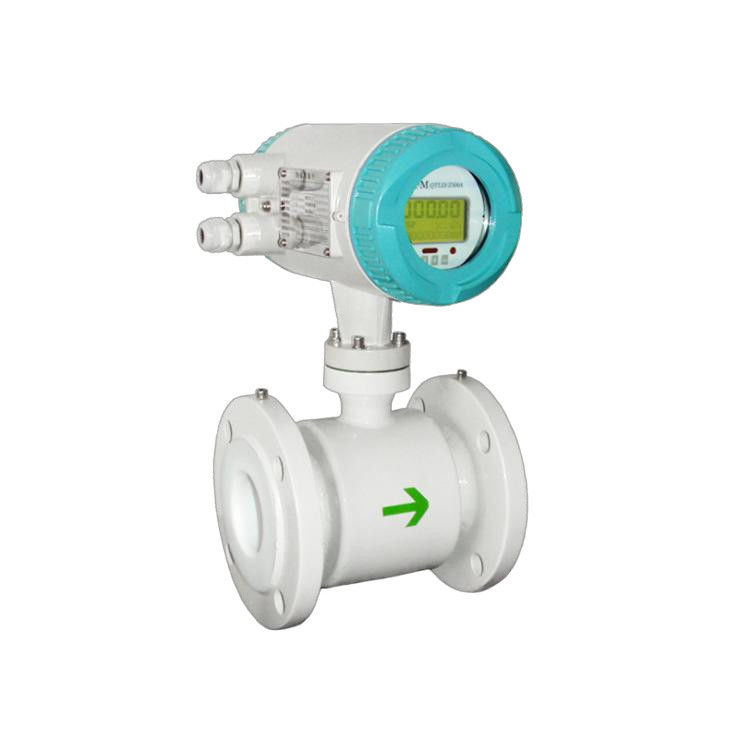

EM6 Electromagnetic Flow Meter DN15 - DN3000 1/2”- 120”

Name: EM6 Electromagnetic Flow Meter DN15 - DN3000 1/2”- 120”
Brand: Flo-Instru
SKU: EM6
Rating: 4.5 (103 reviews)

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: EM6

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                EM6 Electromagnetic Flowmeter, DN3000 Electromagnetic Flowmeter, EM6 Electromagnetic Flow Meter


Product Name:	Electromagnetic Flowmeter	Size:	DN15-DN3000(1/2”~120”)
Accuracy:	±0.5% Of Reading,±0.3% And ±0.2% Optional,velocity >0.3 M/s	Power Supply:	AC85~250V,DC20V~36V
Relative Humidity:	5%~95%	Communication:	RS485/Modbus,Hart,Profitbus
Ambient Temperature:	-20℃~60℃	Velocity:	0.1 M/s～15 M/s
Frequency Output:	1-5000Hz

Product Name:	Electromagnetic Flowmeter
Size:	DN15-DN3000(1/2”~120”)
Accuracy:	±0.5% Of Reading,±0.3% And ±0.2% Optional,velocity >0.3 M/s
Power Supply:	AC85~250V,DC20V~36V
Relative Humidity:	5%~95%
Communication:	RS485/Modbus,Hart,Profitbus
Ambient Temperature:	-20℃~60℃
Velocity:	0.1 M/s～15 M/s
Frequency Output:	1-5000Hz

EM6 Electromagnetic Flow Meter DN15 - DN3000 1/2”- 120”

EM6 Electromagnetic Flow Meter

Description

Electromagnetic flow meter consists of sensors and converters in two parts. The product is based on Faraday's law of electromagnetic induction, used to measure the conductance greater than 20 μS / cm volume of conductive liquid flow, In addition to measuring the general volume of conductive liquid flow, but also can be used to measure strong acid, alkali and other strong corrosive liquids and mud, pulp, pulp and other liquid-solid two-phase suspension of uniform volume flow.

Benefit

Medium temperature:

Integral type : -20℃~60℃

Remote type(Rubber&Polyurethane liner): -10℃~80℃

Remote type (PTFE&PFA&F46 liner): -10℃~160℃

Integrated verification,diagnostic function and empty pipe detection.
Measure forward and reverse direction flows.
Built-in reference electrodes,no need to connect ground ring.
Dual frequency excitation and stable zero point.
Precision coil winding technology,makes magnetic field more uniform.
High protection grade,IP65 for transmitter ,IP68 for sensor
No moving parts,no pressure loss.
High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s.
Standard cable length is 10m, the maximum length could reach to 100m.

Dimensions of Sensor and Converter

Nominal Diameter	External Dimension (mm)		Weight	Nominal Diameter	External Dimension (mm)		Weight
mm	L	D	Kg	mm	L	D	Kg
15	200	95	8	500	600	715	200
20	200	105	10	600	600	840	280
25	200	115	12	700	700	895	350
32	200	140	13	800	800	1015	400
40	200	150	14	900	900	1115	480
50	200	165	15	1000	1000	1230	550
65	200	185	18	1200	1200	1405	660
80	200	200	20	1400	1400	1630	750
100	250	235	25	1600	1600	1830	850
125	250	270	28	1800	1800	2045	980
150	300	300	30	2000	2000	2265	1200
200	350	340	50	2200	2200	2475	1600
250	450	405	70	2400	2400	2685	2000
300	500	460	95	2600	2600	2905	2400
350	550	520	120	2800	2800	2905	2700
400	600	580	140	3000	3000	3315	2900
450	600	640	160

Integrated Type

EM6 Electromagnetic Flow Meter DN15 - DN3000 1/2”- 120” 0

Separated Type

EM6 Electromagnetic Flow Meter DN15 - DN3000 1/2”- 120” 2

Flange Dimension (GB/T9119-2000)

Nominal Pressure	Caliber(mm)	D(mm)	K(mm)	Φ(mm)	N(mm)	C(mm)
4.0 Mpa 1.6 MPa	15	95	65	14	4	14
	20	105	75	14	4	16
	25	115	85	14	4	16
	32	140	100	18	4	18
	40	150	110	18	4	18
	50	165	125	18	4	20
	65	185	145	18	8	22
	80	200	160	18	8	24
	100	235	190	22	8	26
	125	270	220	26	8	28
	150	300	250	26	8	30
	200	340	295	22	12	26
	250	405	355	26	12	28
	300	460	410	26	12	32
	350	520	470	26	16	35
	400	580	525	30	16	38
	450	640	585	30	20	42
	500	715	650	33	20	46
	600	840	770	36	20	52
	700	895	840	30	24	30
	800	1015	950	33	24	32
	900	1115	1050	33	28	34
1.0 MPa	1000	1230	1160	36	28	34
	1200	1405	1340	33	32	28
	1400	1630	1560	36	36	32
	1600	1830	1760	36	40	34
0.6 MPa	1800	2045	1970	39	44	36
	2000	2265	2180	42	48	38
	2200	2475	2390	42	52	42
	2400	2685	2600	42	56	44
	2600	2905	2810	48	60	46
	2800	3115	3020	48	64	48
	3000	3315	3220	48	68	50

Compact Type Converter

Separated Type Converter
