Product Details
Place of Origin: Shenzhen, China
Brand Name: Flo-Instru
Certification: ISO:9001, CE
Model Number: DUF901-EP
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Product Name: |
Doppler Ultrasonic Flowmeter |
Flow Velocity Range: |
0.05- 12 M/s |
Accuracy: |
0.5% -- 2.0% F.S. |
Power Supply: |
AC: 85-265V DC: 24V/500mA |
Resolution: |
0.25mm/s |
Response Time: |
2-60s For Optional |
Enclosure Type: |
Portable |
Degree Of Protection: |
IP65 According To EN60529 |
Housing Material: |
ABS |
Product Name: |
Doppler Ultrasonic Flowmeter |
Flow Velocity Range: |
0.05- 12 M/s |
Accuracy: |
0.5% -- 2.0% F.S. |
Power Supply: |
AC: 85-265V DC: 24V/500mA |
Resolution: |
0.25mm/s |
Response Time: |
2-60s For Optional |
Enclosure Type: |
Portable |
Degree Of Protection: |
IP65 According To EN60529 |
Housing Material: |
ABS |

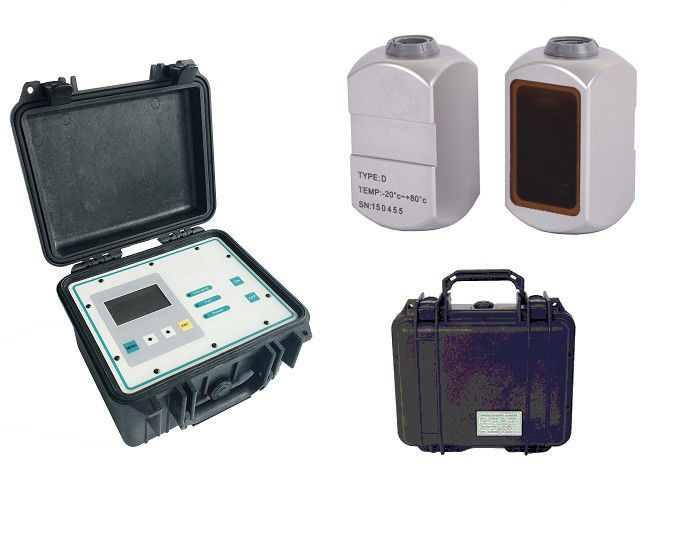

DUF901-EP Doppler Portable Ultrasonic Flow Meter
DUF901-EP Doppler Portable Ultrasonic Flow Meter is designed to measure volumetric flow of within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid.
The Doppler ultrasonic flow meter can display flow rate and flow totalizer, etc., and is configured with 4-20mA, OCT outputs
Features:
Applications:
Technical Parameters:
Specifications: Transmitter
| Measurement principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Repeatability | 0.2% of reading |
| Accuracy | 0.5% -- 2.0% F.S. |
| Response time | 2-60s for optional |
| Flow Velocity Range | 0.05- 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron. |
| Power Supply | AC: 85-265V |
| Enclosure type | Portable |
| Degree of protection | IP65 according to EN60529 |
| Operating temperature | -20℃ to +60℃ |
| Housing material | ABS |
| Measurement Channels | 1 |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Communication | 4-20mA,OCT output |
| keypad | 6pcs buttons |
| Size | Transmitter:270X125X175mm |
| Weight | 3kg |
Specifications: Transducer
| Transducers Type | Clamp-on |
| Degree of protection | IP65. IP67 or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
| High Temp.: -35℃~200℃ for short periods up to 250℃ | |
| Pipe diameter range | 40-4000 mm |
| Transducer Size | 60(h)*34(w)*33(d)mm |
| Material of transducer | Aluminum for standard temp. sensor, peek for high temp. sensor |
| Cable Length | Std: 5m |
