Product Details
Place of Origin: Shenzhen, China
Brand Name: Flo-Instru
Certification: ISO:9001, CE
Model Number: DUF901-EI
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Product Name: |
Doppler Ultrasonic Flowmeter |
Flow Velocity Range: |
0.05- 12 M/s |
Accuracy: |
0.5% -- 2.0% F.S. |
Power Supply: |
AC: 85-265V DC: 24V/500mA |
Response Time: |
2-60s For Optional |
Degree Of Protection: |
IP66 According To EN60529 |
Housing Material: |
Fiberglass |
Communication: |
4-20mA,Relay And OCT Output |
Product Name: |
Doppler Ultrasonic Flowmeter |
Flow Velocity Range: |
0.05- 12 M/s |
Accuracy: |
0.5% -- 2.0% F.S. |
Power Supply: |
AC: 85-265V DC: 24V/500mA |
Response Time: |
2-60s For Optional |
Degree Of Protection: |
IP66 According To EN60529 |
Housing Material: |
Fiberglass |
Communication: |
4-20mA,Relay And OCT Output |

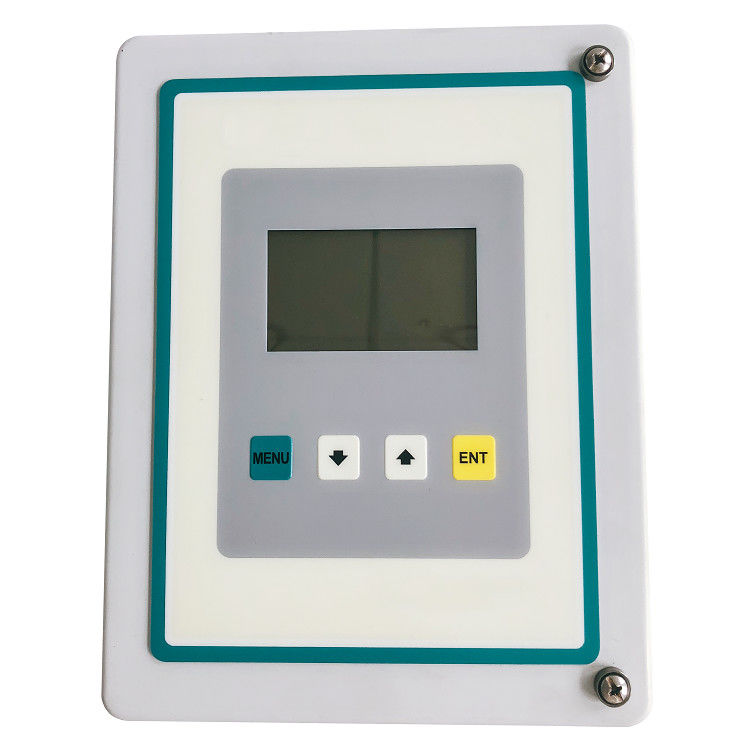

DUF901-EI Insertion Doppler Ultrasonic Flowmeter
DUF901-EI Insertion Doppler Ultrasonic Flowmeter can measure metal or plastic pipes with a certain amount of air bubbles or suspended solids.
Advanced technique allows this instrument to operate with high reliability and low maintenance. Insertion transducers permit the instrument to be installed without interrupting system pressure or flow.
Features:
Applications:
Technical Parameters:
Specifications: Transmitter
| Measurement principle | Doppler ultrasonic |
| Resolution | 0.25mm/s |
| Repeatability | 0.2% of reading |
| Accuracy | 0.5% -- 2.0% F.S. |
| Response time | 2-60s for optional |
| Flow Velocity Range | 0.05- 12 m/s |
| Liquid Types Supported | Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron. |
| Power Supply | AC: 85-265V DC: 24V/500mA |
| Enclosure type | Wall-mounted |
| Degree of protection | IP66 according to EN60529 |
| Operating temperature | -20℃ to +60℃ |
| Housing material | Fiberglass |
| Measurement Channels | 1 |
| Display | 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) |
| Units | User Configured (English and Metric) |
| Rate | Rate and Velocity Display |
| Totalized | gallons, ft³, barrels, lbs, liters, m³,kg |
| Communication | 4-20mA,Relay and OCT output |
| keypad | 4pcs buttons |
| Size | 244(h)*196(w)*114(d)mm |
| Weight | 2.4kg |
Specifications: Transducer
| Transducers Type | Insertion |
| Degree of protection | IP67 or IP68 according to EN60529 |
| Suited Liquid Temperature | Std. Temp.: -35℃~85℃ |
| High Temp.: -35℃~150℃ | |
| Pipe diameter range | 65-4000 mm |
| Transducer Size | 58*58*199mm |
| Transducer material | Stainless steel |
| Cable Length | Std: 10m |
