Product Details
Place of Origin: Shenzhen, China
Brand Name: Flo-Instru
Certification: ISO:9001, CE
Model Number: MU801 Plus
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Velocity Range: |
0.01~12m/s (0.03~40ft/s) |
Accuracy: |
±0.5% Of Measured Value |
Repeatability: |
0.15% |
Pipe Diameter Range(Optional): |
25mm~5000mm (1"~200") |
Measuring Medium: |
Water, Sea Water, Oil, Alcohol... |
Pipe Material(Optional): |
Carbon Steel, Stainless Steel, Copper, PVC |
Communication Interface: |
RS485, Support Modbus Communication Protocol |
Power Supply: |
24~36V DC |
Keyboard: |
Four Touch Keys |
Display: |
3.5" TFT LCD 480*320 |
Humidity: |
Up To 95% RH, Non-condensing |
Velocity Range: |
0.01~12m/s (0.03~40ft/s) |
Accuracy: |
±0.5% Of Measured Value |
Repeatability: |
0.15% |
Pipe Diameter Range(Optional): |
25mm~5000mm (1"~200") |
Measuring Medium: |
Water, Sea Water, Oil, Alcohol... |
Pipe Material(Optional): |
Carbon Steel, Stainless Steel, Copper, PVC |
Communication Interface: |
RS485, Support Modbus Communication Protocol |
Power Supply: |
24~36V DC |
Keyboard: |
Four Touch Keys |
Display: |
3.5" TFT LCD 480*320 |
Humidity: |
Up To 95% RH, Non-condensing |

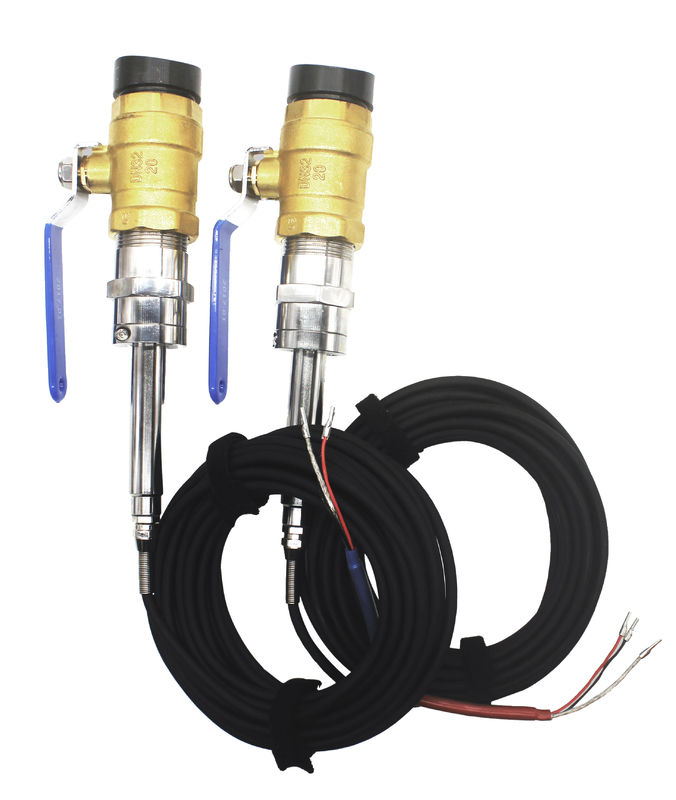

MU801 Plus Insertion Wall Mount Ultrasonic Multi-Channel Flow Meter
MU801 Plus Multi-Path Ultrasonic Flowmeter
Your reliable high precision flow measurement solutions!
Introduction
The MU801 Plus ultrasonic flowmeter is a high-precision instrument with ultra-high accuracy, linearity, and repeatability, which meets strict measurement requirements.
Its measurement accuracy is high, and it is almost free from the influence of various parameters and the interference of the measuring medium. It is an ideal solution for flow measurement of strong corrosive, non-conductive, radiant and flammable and explosive media.
Main Features
Applications
Virtually all commonly used liquids. Liquids with small amounts of small particles can also be measured. Examples are hot/cold water, sea water, waste water, chemical liquids, oil, crude oil, alcohol, beer, etc.
Specifications
|
PERFORMANCE SPECIFICATIONS |
||
| Velocity range | 0.01~12m/s (0.03~40ft/s) | |
| Accuracy | ±0.5% of measured value | |
| Repeatability |
0.15% |
|
| Pipe size |
25mm~5000mm (1"~200")
Insertion type:100mm~5000mm(4"~200") |
|
| FUNCTION SPECIFICATIONS | ||
| Outputs |
Analog output: 4-20mA & Analog input, max load: 600Ω Pulse output: 0~9999Hz, OCT output (adjustable) Relay output: SPST, max 1Hz, (1A@125V AC or 2A@30V DC) |
|
| Communication: | RS485, support Modbus communication protocol | |
| Power supply | 24~36V DC | |
| Keypad | Four Touch keys | |
| Display | 3.5" TFT LCD 480*320 | |
| Temperature |
Transmitter: -40℃~60℃ (-40℉~+140℉) Clamp-on transducer: -40℃~+120℃ (-40℉~+248℉) Insertion transducer: -40℃~+80℃ (-40℉~+176℉) |
|
| Humidity | Up to 95% RH, non-condensing | |
| Apply to water quality |
Turbidity range: 0~12000NTU PH range: 6~9 Suitable for with bubbles and no bubbles |
|
| Self-detective function and Error indications | Separately displays instantaneous and totalizer flow rates, unit of the measurement is 8-digit display. | |
| PHYSICAL SPECIFICATIONS | ||
| Transmitter | Die-cast aluminum, IP54 | |
| Transducer |
Encapsulated design, double-shielded transducer cable. The standard length of cable: 33ft (10m); Protection grade: IP68 |
|
| Weight |
Transmitter: approximately 3.3 lb (1.5KG) Transducer: approximately 3.3 lb (1.5KG) |
|
