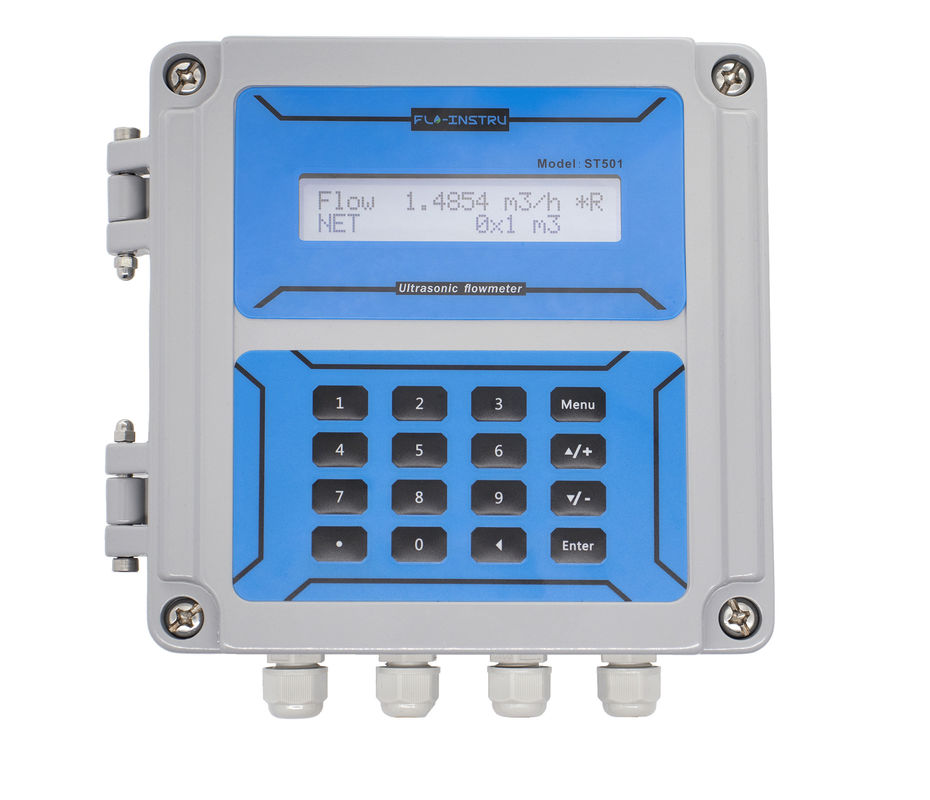

ST501 Series Wall-Mounted Flow Meter For Sewage Treatment

Product Details

Place of Origin: ShenZhen

Brand Name: Flo-Instru

Certification: CE; ISO9001

Model Number: ST501

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Highlight:

Carbon Steel Liquid Ultrasonic Flow Meter

,

500mm Energy Flow Meter

,

Liquid Ultrasonic Flow Meter 500mm

Pipe Size:
1”~48”DN25-DN1200
Pipe Material:
PVC, Carbon Steel, Stainless Steel...
Liquid:
Water, Sea Water, Oil, Alcohol...
Velocity Range:
0 ~±16ft/s (0 ~±5m/s)
Accuracy:
±1.0% Of Measured Value
Repeatability:
0.3%
Type Of Temperature Sensor:
Clamp On
Operating Temperature:
32℉~140℉ (0℃~60℃)
Display:
20×2, Alphanumeric, Backlit LCD
Power Supply:
24V DC@1Amax
Pipe Size:
1”~48”DN25-DN1200
Pipe Material:
PVC, Carbon Steel, Stainless Steel...
Liquid:
Water, Sea Water, Oil, Alcohol...
Velocity Range:
0 ~±16ft/s (0 ~±5m/s)
Accuracy:
±1.0% Of Measured Value
Repeatability:
0.3%
Type Of Temperature Sensor:
Clamp On
Operating Temperature:
32℉~140℉ (0℃~60℃)
Display:
20×2, Alphanumeric, Backlit LCD
Power Supply:
24V DC@1Amax
ST501 Series Wall-Mounted Flow Meter For Sewage Treatment

ST501 Stationary Ultrasonic Flowmeter

Integrate into your management system to provide remote measurement services.



Introduction

ST501 ultrasonic flowmeter uses the latest digital technology and low-voltage broadband pulse transmission. The meter can include a small amount of bubbles or suspended solids in most industrial environments.



Flo-Instruments ST501 ultrasonic flowmeter offers high-accurate and repeatable flow measurement for liquids at an economical price. It is made of strong metal case. Combined the outstanding performance transducer with high industrial grade material, it's ideal for pipes size from 1''(25mm) up to 48''(1200mm) in diameter. IP68 sensors that are easy to install requires this pipe not to be cut, thus reducing installation and labor costs. Simple interface makes it very convenient to operate.





Benefits

  • Measures the actual flow and total consumption ofvarious liquids
  • No loss of process control, optimization of assets and efficiency, no downtime or expense from calibration
  • Adaptive signal processing algorithms optimize performance, ensuring accurate measurements even in challenging flow conditions.
  • Clear display interface and LCD display with alarm function, easy to operate and debug
  • Utilize transit-time ultrasonic technology so as to realize bidirectional flow measurement by precisely measuring the time it takes for ultrasonic signals to travel upstream and downstream
  • Leverage the data logging capabilities to analyze historical flow patterns to make system optimization.
  • Built-in keypad and simple menu system for fast and easy programming of pipe diameter, pipe material, liquid type, and measurement units.



Principle

  • Introduction to TVT

TVT(Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining the principles of transit-time ultrasonics with the capability to harness the vortex shedding phenomenon, delivering unparalleled accuracy and versatility in ultrasonic flow meters. This innovative integration technology enhances the accuracy, versatility, and performance of ultrasonic flow meters, making them well-suited for a wide range of applications across various industries and is a valuable solution for industries requiring precise flow measurements in varying flow conditions.



  • Enhanced Accuracy in Turbulent Flows:

TVT technology excels in applications where fluid flow conditions vary between laminar and turbulent. The incorporation of vortex shedding data enhances accuracy in challenging flow environments.

  • Versatility in Fluid Types:

TVT technology is versatile and suitable for a wide range of fluid types, including liquids with varying viscosities and densities.









Specifications

Performance specifications
Velocity range 0 ~ ±16ft/s (0 ~ ±5m/s)
Accuracy ±1.0%
Pipe size Clamp-on:1’’~48’’ (25mm~1200mm)
Fluid Water, Sea water, Oil, Alcohol...
Pipe material PVC, Carbon Steel, Stainless Steel...
Function specifications
Optional Outputs OCT Pulse output: 0~5000Hz.
Analog output: 4~20mA, max load 750Ω.
Communication interface RS485
Power supply 24V DC/1A
Keypad 16(4×4) key with tactile action
Display 20×2 lattice alphanumeric, back lit LCD.
Temperature Transmitter: 32℉~140℉(0℃~60℃)
Transducer: 32℉~140℉(0℃~60℃)
Humidity Up to 99% RH, non-condensing
Physical specifications
Transmitter Aluminum Alloy, IP65.
Transducer Encapsulated design, IP68.
Transducer cable Standard cable length: 33ft (10m).
Weight

Transmitter: approximately 0.7kg;

Transducer: approximately 0.4kg
