Product Details
Place of Origin: Shenzhen
Brand Name: Flo-Instru
Certification: CE; ISO9001
Model Number: ST502
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Pipe Size: |
DN25-DN5000 |
Pipe Material: |
PVC, Carbon Steel, Stainless Steel... |
Liquid: |
Water, Sea Water, Oil, Alcohol... |
Type Of Transducers: |
Clamp On |
Operating Temperature: |
Clamp On Transducer: -40℉ ~ +248℉(-40℃ ~ +120℃) |
Repeatability: |
0.15% |
Display: |
20*2, Alphanumeric, Backlit LCD |
Output: |
4-20mA, OCT Pulse Output, Relay Output, RS-232 / RS-485, RTD Temp. Input |
Transmitter Enclosure: |
IP65, Die-cast Aluminum Machined Enclosure, CNC Machined |
Pipe Size: |
DN25-DN5000 |
Pipe Material: |
PVC, Carbon Steel, Stainless Steel... |
Liquid: |
Water, Sea Water, Oil, Alcohol... |
Type Of Transducers: |
Clamp On |
Operating Temperature: |
Clamp On Transducer: -40℉ ~ +248℉(-40℃ ~ +120℃) |
Repeatability: |
0.15% |
Display: |
20*2, Alphanumeric, Backlit LCD |
Output: |
4-20mA, OCT Pulse Output, Relay Output, RS-232 / RS-485, RTD Temp. Input |
Transmitter Enclosure: |
IP65, Die-cast Aluminum Machined Enclosure, CNC Machined |

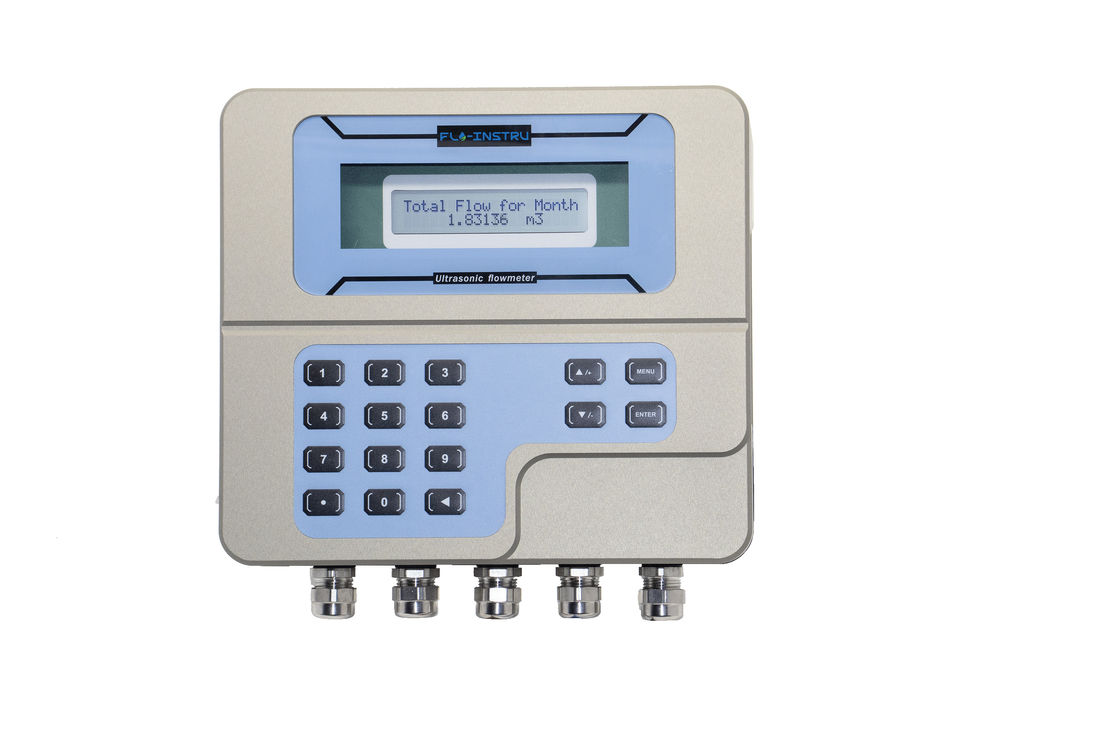

ST502 0.5-Level Clamp-on Type Ultrasonic Flowmeter
Ultrasonic flow meters that use transit-time methods to measure flow.
Introduction
ST502 is a high-accuracy ultrasonic flow meter, which supports the large diameter of DN25~DN5000. Clamp-on type and insertion type sensors can be selected, and different sensors have their own relative advantages:
The clamp-on type does not contact with liquid, and can measure various liquids. It does not need to stop production during installation. It is supported in various pipelines such as carbon steel pipes, cast iron pipes and PVC pipes, and is suitable for measuring related scenes such as medical, beverage and drinking water.
Insertion type measurement is relatively stable, and can also be installed online with pressure, without stopping production. It supports various special pipelines such as cement pipes and cast iron pipes, and is suitable for measuring water consumption in sewage plants, irrigation, industrial production processes and other related scenarios.
Main Features
Applications
Clamp-on flow measurement of drinking water, process water, sea water, demineralized water, wastewater, and tolerant of liquids with small amounts of air bubbles or suspended solids.
Specifications
| Product Name | Clamp-on Type Ultrasonic Flowmeter |
| Product Model | ST502 |
| Velocity range | 0 ~ ±40ft/s (0 ~ ±12m/s) |
| Accuracy | ±0.5% |
| Repeatability | 0.15% |
| Linearity | 0.5% |
| Pipe size | 25mm ~ 5000mm (1" ~ 200") |
| Outputs |
Analog output: 4~20mA (max load 750 ) Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable) Relay output: SPST, max 1Hz, (1A@125VAC or 2A@30VDC) |
| Communication | RS485 |
| Power supply | 24V DC |
| Keypad | 16 light tactile keys |
| Display | 40 character, 2 line (20×2) lattice alphanumeric, backlit LCD |
| Temperature | Transmitter:-40℉~140℉ (-40℃~60℃) Transducer:-40℉~248℉ (-40℃~120℃) Standard |
| Humidity | UP to 99% RH, non-condensing |
| Suitable for pipes | Cement pipe, stainless steel, carbon steel, copper pipe, plastic pipe, etc |
| Transmitter | Aluminium alloy CNC |
| Transducer |
Encapsulated design, double-shielded transducer cable. Standard cable length: 10m (33ft), the maximum length can be increased to 305 meters (every 5 meters is an extension unit) |
| Transmitter Weight | About 1.2kg |
| Transducer Weight |
Clamp-on type (standard): about 1.3kg (2.9lb)/ pair Insertion type (standard): about 4.7kg (10.4lb)/ pair |
