Ultrasonic Clamp-On Flow Meter Manufacturer

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: TM601

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Highlight:

Clamp On Water Flow Meter 100mm

,

100mm Clamp On Flow Meter

,

Sea Water Clamp On Water Flow Meter

Pipe Material:
PVC, Carbon Steel, Stainless Steel, Copper
Liquid:
Water, Sea Water, Oil... ...
Pipe Size:
DN4-DN200
Flow Rate:
0.098 Ft/s ~ ±16ft/s (0.03m/s ~ ±5m/s)
Accuracy:
± 2.0%
Output:
4-20mA, RS485
Temperature:
14℉ ~ +122℉ (-10℃ ~ +50℃)
Repeatability:
0.8%
Communication Interface:
Support MODBUS Protocol
Pipe Material:
PVC, Carbon Steel, Stainless Steel, Copper
Liquid:
Water, Sea Water, Oil... ...
Pipe Size:
DN4-DN200
Flow Rate:
0.098 Ft/s ~ ±16ft/s (0.03m/s ~ ±5m/s)
Accuracy:
± 2.0%
Output:
4-20mA, RS485
Temperature:
14℉ ~ +122℉ (-10℃ ~ +50℃)
Repeatability:
0.8%
Communication Interface:
Support MODBUS Protocol
Ultrasonic Clamp-On Flow Meter Manufacturer

TM601 Dedicated Fixed Buckled Ultrasonic Flow Meter

Clip-on type ultrasonic flow meters.



Introduction



TM601 has unique advantages by virtue of its patented innovation in fluid measurement in fixed small diameter pipes.



· Exclusive new installation design-automatic magnet bracket buckle, it only takes 2-3 minutes to complete the whole process from installation to measurement

· No additional changes to the pipeline, no professional knowledge, installation and measurement can be completed according to the operating instructions.

· No moving parts, no pressure loss, and be installed and used without stopping production

· OLED display, easy to distinguish even in low light environment



· Suitable for a variety of pipelines: stainless steel, carbon steel, plastic pipe (PVC, PVDF, PPR, PPH, HDPE, PE etc.)



Main Features

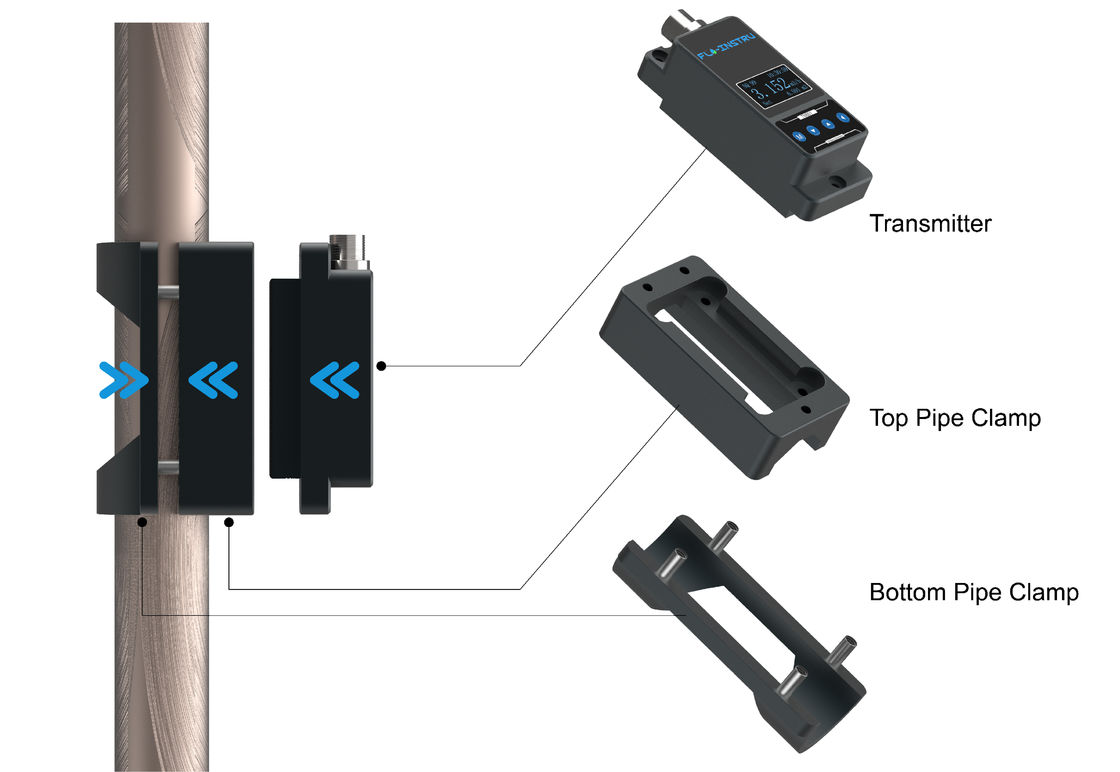

The product is an integrated structure design, which is easy to install through four screws, and has special insulation on the outside. The clamp-on type reduces the hassle of field installation. It is unnecessary to cut the pipe, stop flow for installation and there is no pressure loss. TM601 also supports, RS485 and 4-20mA output, etc.



Support Pipe Size

OD Outer Diameter Nominal Diameter
OD OD Range DN Inch
OD9.53 9.5mm-10.5mm DN4
OD12.7 12.4mm-13.1mm DN8 1/4’’
OD15 14.5mm-15.4mm DN10 3/8’’
OD20 16.5mm-23.0mm DN15 1/2’’
OD25 25.0mm-30.0mm DN20 3/4’’
OD32 32.0mm-35.0mm DN25 1’’
OD40 38.0mm-45.0mm DN32 1-1/4’’
OD50 48.0mm-54.0mm DN40 1-1/2’’
OD63 58.0mm-64.0mm DN50 2’’
OD75 72.0mm-78.0mm DN65 2-1/2’’
OD90 80.0mm-92.0mm DN80 3’’
OD110 108.0mm-116.0mm DN100 4’’
OD140 132.0mm-142.0mm DN125 5’’
OD220 218.0mm-228.0mm DN200 8’’



Applications

HVAC system, building automation system, farming irrigation system, residential water supply system, cleaning system, recirculating aquaculture system(RAS), etc.



Specifications

Performance Index
Velocity Range ±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s)
Accuracy Valued ±2%
Repeatability 0.40%

Pipe Diameter

Range(Optional)

OD9.53, OD12.7, OD15, OD20, OD25, OD32, OD40, OD50,

OD63,OD75, OD90, OD110, OD140, OD220

Measuring Medium Water, Sea water, Oil
Pipe Material(Optional) Carbon steel, stainless steel, copper, PVC
Function Index
Communication Interface RS485 communication interface, support Modbus protocol
Power Supply 24V DC
Keyboard 4 touch keys
Display In-built Backlit OLED 128*64 dot-matrix displays
Temperature Transmitter ambient temperature: 14℉~122℉(-10℃~50℃)
Transducer measurement medium: 14℉~122℉(-10℃~50℃)
Humidity RH 0~95% RH,non-condensing
IP IP54
Working Pressure 1.6MPa
Physical Characteristics
Transmitter All-in-one
Sensor Clamp-on
Cable Standard length: 2m
