Product Details
Place of Origin: Shenzhen, China
Brand Name: Flo-Instru
Certification: ISO:9001, CE
Model Number: TM601
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Liquid: |
Water, Sea Water, Oil... ... |
Pipe Material: |
PVC, Carbon Steel, Stainless Steel, Copper |
Pipe Size: |
DN4-DN200 |
Flow Rate: |
0.098 Ft/s ~ ±16ft/s (0.03m/s ~ ±5m/s) |
Accuracy: |
± 2.0% |
Output: |
4-20mA, RS485 |
Temperature: |
14℉ ~ +122℉ (-10℃ ~ +50℃) |
Repeatability: |
0.8% |
Communication Interface: |
Support MODBUS Protocol |
Liquid: |
Water, Sea Water, Oil... ... |
Pipe Material: |
PVC, Carbon Steel, Stainless Steel, Copper |
Pipe Size: |
DN4-DN200 |
Flow Rate: |
0.098 Ft/s ~ ±16ft/s (0.03m/s ~ ±5m/s) |
Accuracy: |
± 2.0% |
Output: |
4-20mA, RS485 |
Temperature: |
14℉ ~ +122℉ (-10℃ ~ +50℃) |
Repeatability: |
0.8% |
Communication Interface: |
Support MODBUS Protocol |

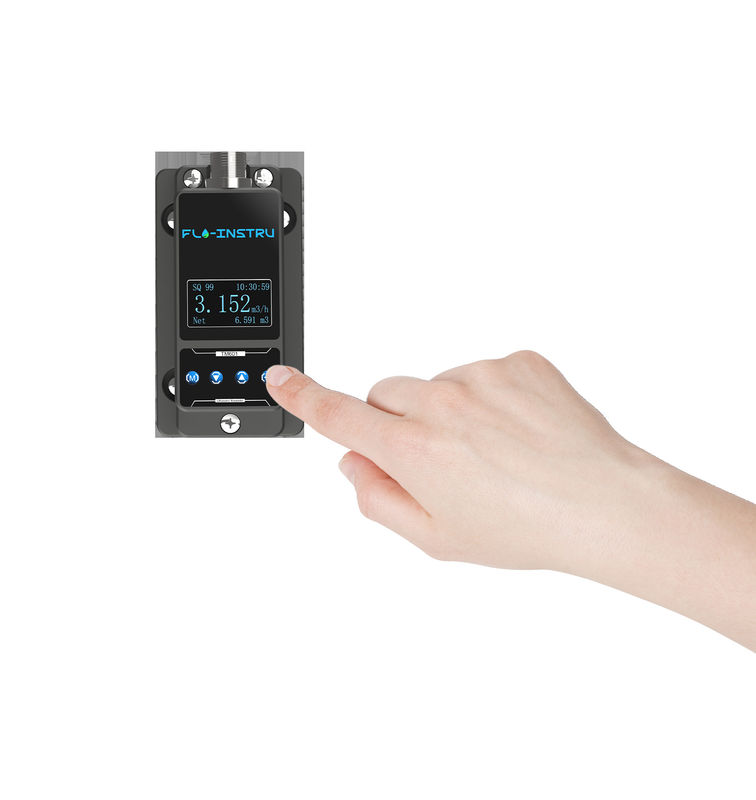

TM601 Dedicated Fixed Buckled Ultrasonic Flow Meter
Clip-on type ultrasonic flow meters.
Introduction
TM601 has unique advantages by virtue of its patented innovation in fluid measurement in fixed small diameter pipes.
· Exclusive new installation design-automatic magnet bracket buckle, it only takes 2-3 minutes to complete the whole process from installation to measurement
· No additional changes to the pipeline, no professional knowledge, installation and measurement can be completed according to the operating instructions.
· No moving parts, no pressure loss, and be installed and used without stopping production
· OLED display, easy to distinguish even in low light environment
· Suitable for a variety of pipelines: stainless steel, carbon steel, plastic pipe (PVC, PVDF, PPR, PPH, HDPE, PE etc.)
Main Features
The product is an integrated structure design, which is easy to install through four screws, and has special insulation on the outside. The clamp-on type reduces the hassle of field installation. It is unnecessary to cut the pipe, stop flow for installation and there is no pressure loss. TM601 also supports, RS485 and 4-20mA output, etc.
Support Pipe Size
| OD | Outer Diameter | Nominal Diameter | ||
| OD | OD Range | DN | Inch | |
| OD9.53 | 9.5mm-10.5mm | DN4 | ||
| OD12.7 | 12.4mm-13.1mm | DN8 | 1/4’’ | |
| OD15 | 14.5mm-15.4mm | DN10 | 3/8’’ | |
| OD20 | 16.5mm-23.0mm | DN15 | 1/2’’ | |
| OD25 | 25.0mm-30.0mm | DN20 | 3/4’’ | |
| OD32 | 32.0mm-35.0mm | DN25 | 1’’ | |
| OD40 | 38.0mm-45.0mm | DN32 | 1-1/4’’ | |
| OD50 | 48.0mm-54.0mm | DN40 | 1-1/2’’ | |
| OD63 | 58.0mm-64.0mm | DN50 | 2’’ | |
| OD75 | 72.0mm-78.0mm | DN65 | 2-1/2’’ | |
| OD90 | 80.0mm-92.0mm | DN80 | 3’’ | |
| OD110 | 108.0mm-116.0mm | DN100 | 4’’ | |
| OD140 | 132.0mm-142.0mm | DN125 | 5’’ | |
| OD220 | 218.0mm-228.0mm | DN200 | 8’’ | |
Applications
HVAC system, building automation system, farming irrigation system, residential water supply system, cleaning system, recirculating aquaculture system(RAS), etc.
Specifications
| Performance Index | |
| Velocity Range | ±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s) |
| Accuracy | Valued ±2% |
| Repeatability | 0.40% |
|
Pipe Diameter Range(Optional) |
OD9.53, OD12.7, OD15, OD20, OD25, OD32, OD40, OD50, OD63,OD75, OD90, OD110, OD140, OD220 |
| Measuring Medium | Water, Sea water, Oil |
| Pipe Material(Optional) | Carbon steel, stainless steel, copper, PVC |
| Function Index | |
| Communication Interface | RS485 communication interface, support Modbus protocol |
| Power Supply | 24V DC |
| Keyboard | 4 touch keys |
| Display | In-built Backlit OLED 128*64 dot-matrix displays |
| Temperature | Transmitter ambient temperature: 14℉~122℉(-10℃~50℃) |
| Transducer measurement medium: 14℉~122℉(-10℃~50℃) | |
| Humidity | RH 0~95% RH,non-condensing |
| IP | IP54 |
| Working Pressure | 1.6MPa |
| Physical Characteristics | |
| Transmitter | All-in-one |
| Sensor | Clamp-on |
| Cable | Standard length: 2m |
