±0.5% Accuracy Clamp-on Multi Channel Ultrasonic Flowmeter MU801 Plus

Product Details

Place of Origin: Shenzhen, China

Brand Name: Flo-Instru

Certification: ISO:9001, CE

Model Number: MU801 Plus

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Conventional Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T

Get Best Price
Highlight:

Clamp-on Ultrasonic Flowmeter Multi channel

,

Ultrasonic Flowmeter MU801 Plus

,

±0.5% Accuracy Ultrasonic Flowmeter

Velocity Range:
0.01~12m/s (0.03~40ft/s)
Accuracy:
±0.5% Of Measured Value
Repeatability:
0.15%
Pipe Diameter Range(Optional):
25mm~5000mm (1"~200")
Measuring Medium:
Water, Sea Water, Oil, Alcohol...
Pipe Material(Optional):
Carbon Steel, Stainless Steel, Copper, PVC
Communication Interface:
RS485, Support Modbus Communication Protocol
Power Supply:
24~36V DC
Keyboard:
Four Touch Keys
Display:
3.5" TFT LCD 480*320
Humidity:
Up To 95% RH, Non-condensing
Velocity Range:
0.01~12m/s (0.03~40ft/s)
Accuracy:
±0.5% Of Measured Value
Repeatability:
0.15%
Pipe Diameter Range(Optional):
25mm~5000mm (1"~200")
Measuring Medium:
Water, Sea Water, Oil, Alcohol...
Pipe Material(Optional):
Carbon Steel, Stainless Steel, Copper, PVC
Communication Interface:
RS485, Support Modbus Communication Protocol
Power Supply:
24~36V DC
Keyboard:
Four Touch Keys
Display:
3.5" TFT LCD 480*320
Humidity:
Up To 95% RH, Non-condensing

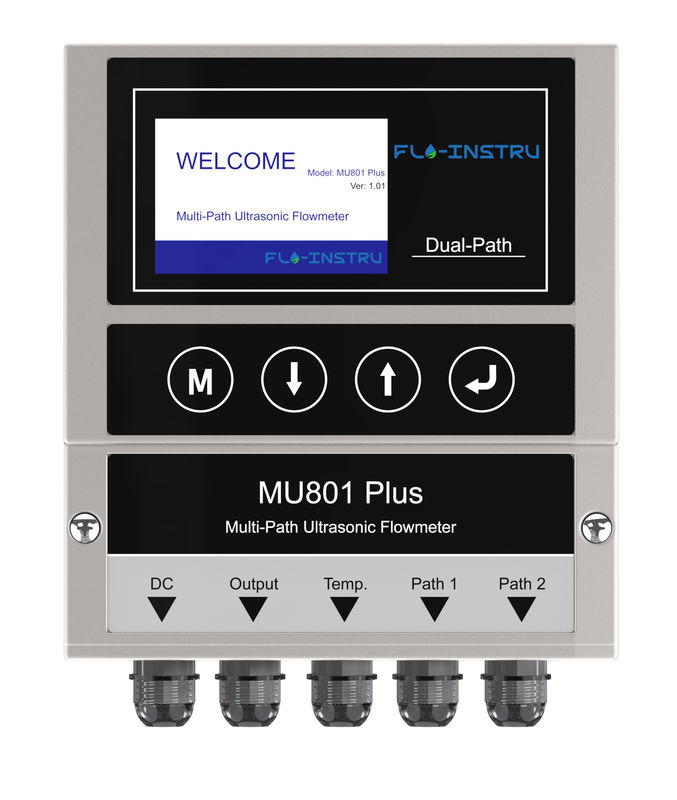

±0.5% Accuracy Clamp-on Multi Channel Ultrasonic Flowmeter MU801 Plus

±0.5% Accuracy Clamp-on Multi-channel Ultrasonic Flowmeter MU801 Plus



MU801 Plus Multi-Path Ultrasonic Flowmeter

Your reliable high precision flow measurement solutions!



Introduction

The MU801 Plus ultrasonic flowmeter is a high-precision instrument with ultra-high accuracy, linearity, and repeatability, which meets strict measurement requirements.



Its measurement accuracy is high, and it is almost free from the influence of various parameters and the interference of the measuring medium. It is an ideal solution for flow measurement of strong corrosive, non-conductive, radiant and flammable and explosive media.



Main Features

  • Support multi-path
  • High Accuracy: ±0.5%



Applications

Virtually all commonly used liquids. Liquids with small amounts of small particles can also be measured. Examples are hot/cold water, sea water, waste water, chemical liquids, oil, crude oil, alcohol, beer, etc.



Specifications

PERFORMANCE SPECIFICATIONS

Velocity range 0.01~12m/s (0.03~40ft/s)
Accuracy ±0.5% of measured value
Repeatability

0.15%

Pipe size

25mm~5000mm (1"~200")



Insertion type:100mm~5000mm(4"~200")

FUNCTION SPECIFICATIONS
Outputs

Analog output: 4-20mA & Analog input, max load: 600Ω

Pulse output: 0~9999Hz, OCT output (adjustable)

Relay output: SPST, max 1Hz, (1A@125V AC or 2A@30V DC)

Communication: RS485, support Modbus communication protocol
Power supply 24~36V DC
Keypad Four Touch keys
Display 3.5" TFT LCD 480*320
Temperature

Transmitter: -40℃~60℃ (-40℉~+140℉)

Clamp-on transducer: -40℃~+120℃ (-40℉~+248℉)

Insertion transducer: -40℃~+80℃ (-40℉~+176℉)

Humidity Up to 95% RH, non-condensing
Apply to water quality

Turbidity range: 0~12000NTU

PH range: 6~9

Suitable for with bubbles and no bubbles

Self-detective function and Error indications Separately displays instantaneous and totalizer flow rates, unit of the measurement is 8-digit display.
PHYSICAL SPECIFICATIONS
Transmitter Die-cast aluminum, IP54
Transducer

Encapsulated design, double-shielded transducer cable.

The standard length of cable: 33ft (10m); Protection grade: IP68

Weight

Transmitter: approximately 3.3 lb (1.5KG)

Transducer: approximately 3.3 lb (1.5KG)
