Product Details
Place of Origin: ShenZhen
Brand Name: Flo-Instru
Certification: CE; ISO9001
Model Number: ST501
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Conventional Packaging
Delivery Time: 3-5 working days
Payment Terms: T/T
Pipe Size: |
1”~48”DN25-DN1200 |
Pipe Material: |
PVC, Carbon Steel, Stainless Steel |
Liquid: |
Water, Sea Water, Oil |
Flow Range: |
0 ~±16ft/s (0 ~±5m/s) |
Accuracy: |
±1.0% Of Measured Value |
Repeatability: |
0.3% |
Type Of Temperature Sensor: |
Clamp On |
Operating Temperature: |
PT100 Temperature Sensor Temperature: 32℉~257℉(0℃~125℃) |
Display: |
20*2, Alphanumeric, Backlit LCD |
Power Supply: |
24V DC@1Amax |
Pipe Size: |
1”~48”DN25-DN1200 |
Pipe Material: |
PVC, Carbon Steel, Stainless Steel |
Liquid: |
Water, Sea Water, Oil |
Flow Range: |
0 ~±16ft/s (0 ~±5m/s) |
Accuracy: |
±1.0% Of Measured Value |
Repeatability: |
0.3% |
Type Of Temperature Sensor: |
Clamp On |
Operating Temperature: |
PT100 Temperature Sensor Temperature: 32℉~257℉(0℃~125℃) |
Display: |
20*2, Alphanumeric, Backlit LCD |
Power Supply: |
24V DC@1Amax |

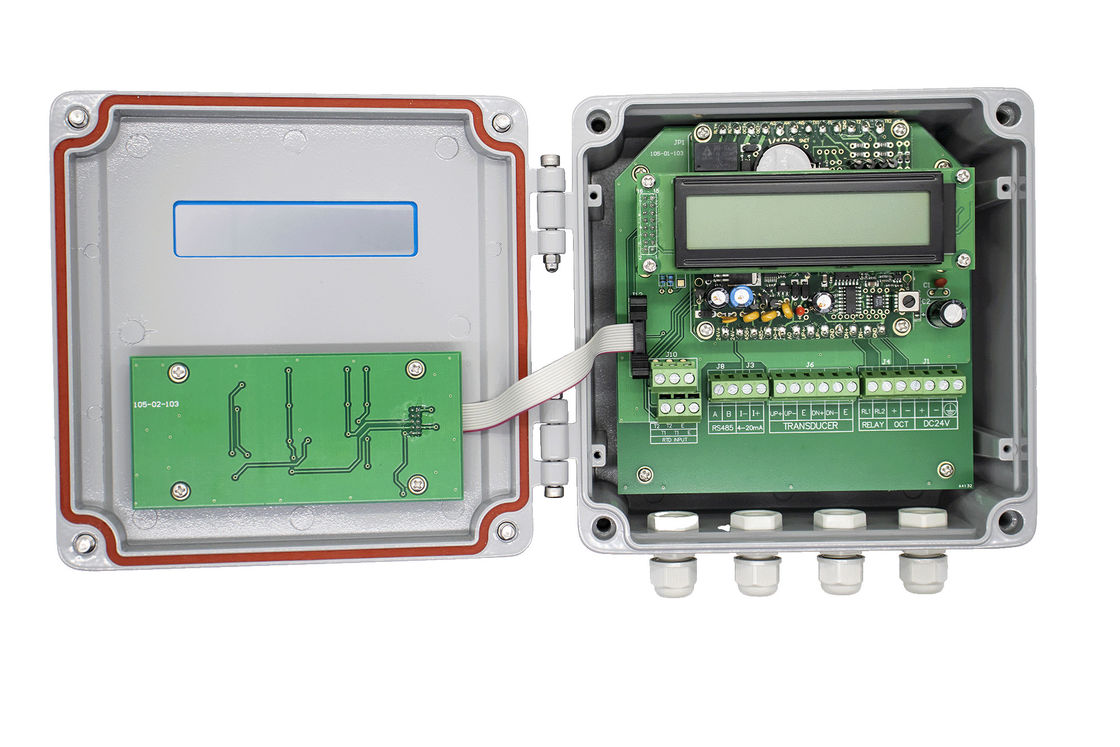

ST501-PT100 Ultrasonic Energy Meter
Clamp-on type ultrasonic energy meters for cooling and heating consumption measurement.
Introduction
ST501-PT100 is an upgraded version of ST501, adding heat energy measurement function, so it can detect flow rate and heat energy consumption of the fluid at the same time.
Main Features
• Precise bi-directional and highly dynamic flow measurement with the non-intrusive clamp-on technology.
• High accuracy at fast and slow flow rates, high temperature and zero point stability.
• Water and liquids, tolerant of liquids with small amounts of air bubbles or suspended solids
•Automatic loading of calibration data and transducer detection for a fast and easy set-up, providing precise and long-term stable results.
• Clear and simple menu selections
• Clamp on transducer and insertion transducer versions
•Transducers available for a wide range of inner pipe diameters(25mm~1200mm) and fluid temperatures (0~60℃)
Applications
Widely used in HVAC, industrial, medical, chemical, environmental and other fields.
Specifications
| Measurement | General Data | |
| Flow | Flow Unit | |
| Velocity Rate | 0.03~±16ft/s(0.01 ~±5m/s) | Support metric unit selection, Cubic Meters(m³),Liters(l), USA Gallons(gal)./hour,/min,The factory default unit is m³per hour. |
| Accuracy | +1.0% | |
| Repeatability | 0.3% | |
| Pipe Size | DN25~DN1200(1”"~48") | |
| Liquid | Water,Sea water,Oil,Alcohol… | Energy Unit |
| Pipe Material | Carbon Steel,Stainless Steel,PVC… | Giga Joule (GJ),Kilocalorie (Kc), KWh,BTU |
| Power Supply | 24 VDC | |
| Cable Length | 10m | Totalizer |
| Key Panel | 16(4×4)touch keys | 6 bit flow rate totalizer. |
| Display | 20×2,alphanumeric,backlit LCD | Communication &Output |
| Ambient Temp | 40°F~+140°F(0℃~60℃) | ModBus RS485,4～20mA, Maximum load:750Ω OCT upper and lower limit alarm |
| Fluid Temp. | 32°F~+140°F(0℃~60℃) | |
| PT100 Temp.Sensor | 32°F~257°F(0℃~125℃) | |
| Ambient Humidity | RH 0~95%,No condensation | Housing Material |
| IP Rate | Transmitter:IP65 | Aluminum alloy |
| Transducer:IP68 | ||
