ST501 Clamp-On Ultrasonic Flowmeter For Cleaning Systems

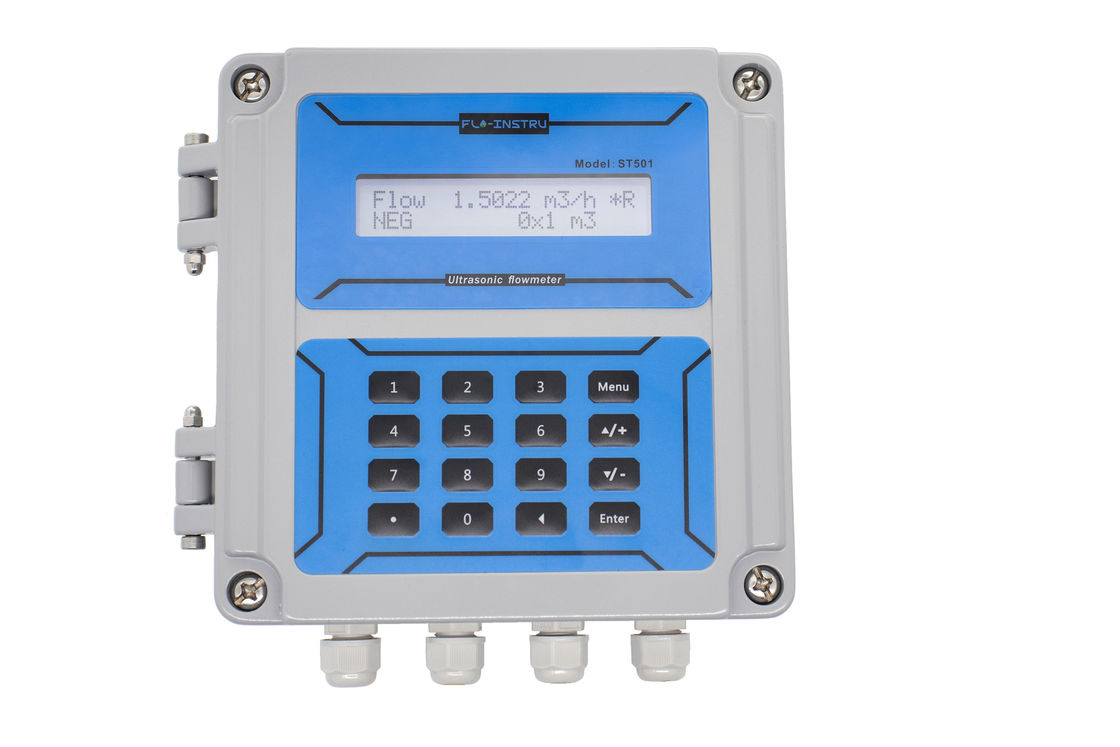

ST501 Stationary Ultrasonic Flowmeter

Integrate into your management system to provide remote measurement services.

Introduction

ST501 ultrasonic flowmeter uses the latest digital technology and low-voltage broadband pulse transmission. The meter can include a small amount of bubbles or suspended solids in most industrial environments.

Flo-Instruments ST501 ultrasonic flowmeter offers high-accurate and repeatable flow measurement for liquids at an economical price. It is made of strong metal case. Combined the outstanding performance transducer with high industrial grade material, it's ideal for pipes size from 1'' (25mm) up to 48'' (1200mm) in diameter. IP68 sensors that are easy to install requires this pipe not to be cut, thus reducing installation and labor costs. Simple interface makes it very convenient to operate.

Benefits

• Measures the actual flow and total consumption ofvarious liquids
• No loss of process control, optimization of assets and efficiency, no downtime or expense from calibration
• Adaptive signal processing algorithms optimize performance, ensuring accurate measurements even in challenging flow conditions.
• Clear display interface and LCD display with alarm function, easy to operate and debug
• Utilize transit-time ultrasonic technology so as to realize bidirectional flow measurement by precisely measuring the time it takes for ultrasonic signals to travel upstream and downstream
• Leverage the data logging capabilities to analyze historical flow patterns to make system optimization.
• Built-in keypad and simple menu system for fast and easy programming of pipe diameter, pipe material, liquid type, and measurement units.

Principle

• Introduction to TVT

TVT(Transit-Time Vortex) technology represents a cutting-edge approach to ultrasonic flow measurement, combining the principles of transit-time ultrasonics with the capability to harness the vortex shedding phenomenon, delivering unparalleled accuracy and versatility in ultrasonic flow meters. This innovative integration technology enhances the accuracy, versatility, and performance of ultrasonic flow meters, making them well-suited for a wide range of applications across various industries and is a valuable solution for industries requiring precise flow measurements in varying flow conditions.

• Enhanced Accuracy in Turbulent Flows:

TVT technology excels in applications where fluid flow conditions vary between laminar and turbulent. The incorporation of vortex shedding data enhances accuracy in challenging flow environments.

• Versatility in Fluid Types:

TVT technology is versatile and suitable for a wide range of fluid types, including liquids with varying viscosities and densities.

Specifications
